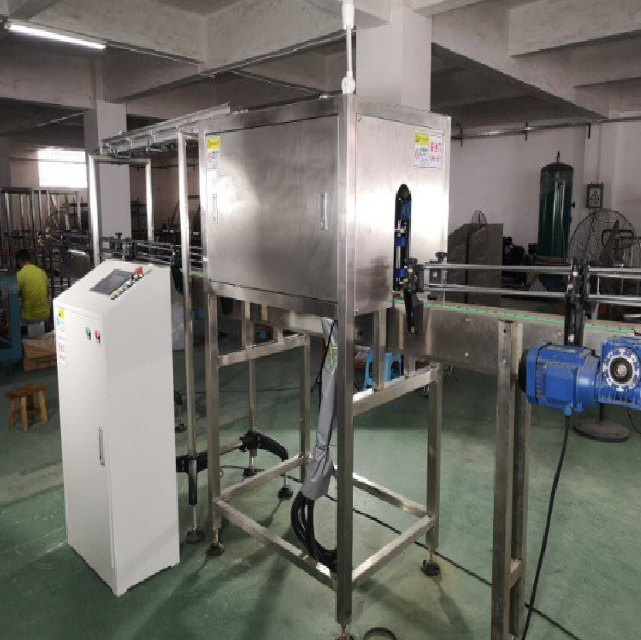

1.5L~5L Semi-Automatic Bottle Handle Machine

Technical parameters

4000BPH bottle handle machine main technical parameters

 Equipment model： T6

Capacity：≥4000BPH（1.5~5Lbottle）

Bleed pressure：0.7Mpa

Air consumption：0.05m³/min

Power：2KW

Nominal voltage：380V

Ø Overall dimension: 1500×1400×1900 (length × width × height)（Ring conveying size is calculated separately）

Ø Equipment Weight：1000KG

Ø Applicable bottle type: round bottle diameter Φ 96 mm or less,bottle hight (with cover) 300~320 mm

(if beyond this range, the equipment can be customized according to the actual size)Bottle shape replacement requires replacement of some parts.

Applicable handle: before ordering, the buyer must provide qualified samples, which shall be manufactured according to the shape, weight and material of the samples.
