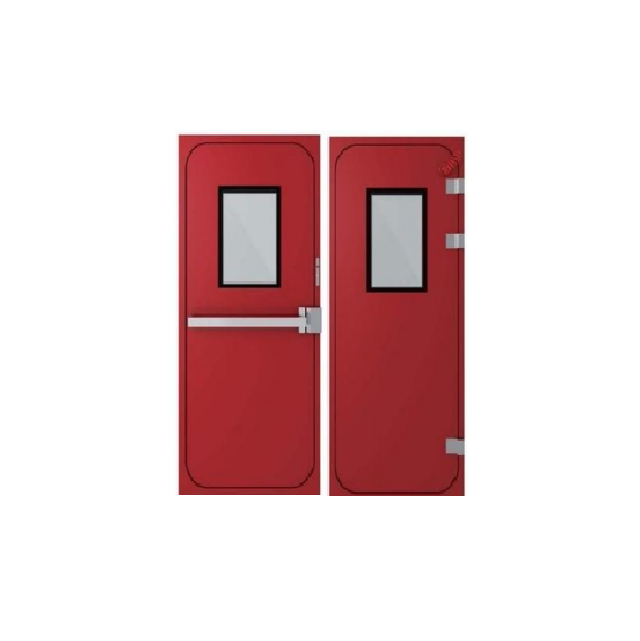

Air-tight Escape Door

Inflated

Airbag pressure reaches the set value.

Exhaust

Airbag air pressure reduced to 0Pa

Air tightness

No leakage when closed.

Out of gas alarm

When the air source pressure is lower than a certain pressure, buzzer alarm

power supply

220V/50Hz

Airbag pressure

0.15-0.2MPa

Switching time

Inflation ≤5s; Deflation ≤5s

The corners of the door frame and door leaf are designed with concentric circles to better ensure airtightness;

The door frame and door leaf are 50mm thick and are installed flush with the hand-boarded wall;

Material

The product can be made of 304 stainless steel or sprayed plastic, and can also be baked to a VHP-resistant surface;

Sight window

The door can be fitted with a right-angled double-paned window in the same style as the clean steel door, with a unique design for the window connection.

Reliable sealing performance;

Sealing strip

The inflatable sealing strip is made of silicone rubber, which is acid-resistant, heat-resistant, cold-resistant and resistant to atmospheric aging.

Able to withstand harsh disinfection and sterilisation conditions;
