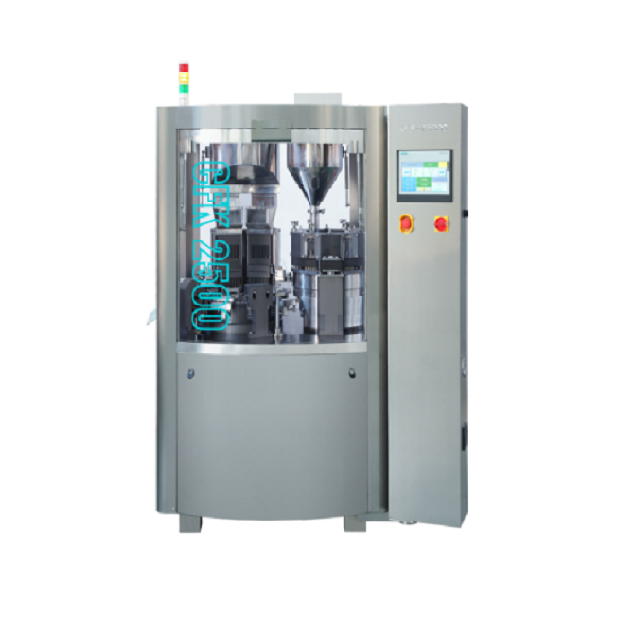

The CFK-2500 full-automatic capsule filling machine adopts intermittent rotary operation and orifice-disc metering filling, with precise and beautiful design, stable and reliable operation. It can automatically complete various processes such as seeding, dividing, filling, removing waste, locking and exporting finished products. Fully enclosed ten-station turntable, the module is a double-row 18-hole design, is an intelligent equipment for hard capsule production in the pharmaceutical and food industries.
Performance characteristics:
1、The fully enclosed ten-station turntable is easy to clean, non-polluting, stable in operation and high in accuracy.
2、The metering disc adopts a three-dimensional adjustment mechanism to evenly measure the gap between the disc and the copper ring, reduce powder leakage and ensure the difference in filling volume.
3、With a high-precision, high-configuration transmission mechanism, it significantly reduces the vibration of the equipment during operation and greatly improves the stability and service life of the machine.
4、Modular powder filling mechanism, easy to disassemble and assemble, and easy to clean.
5、Newly designed powder feeding device, compact structure, convenient disassembly and assembly, and easy cleaning.
6、The lock capsule cleaning device can remove the fine dust raised when the capsule is locked while the capsule is being locked.
7、The mold cleaning and blowing structure solves the problem that the capsule is difficult to pull out due to the strong sticky powder deposition in the mold plane and cavity during production, and improves the probability of capsule loading.
8、The main electronic control components adopt imported brands, and the advanced control principle ensures the precise realization of various program control and safety protection functions.
9、The man-machine interface is beautiful and dustproof, easy to operate, and complete functions.
Description of performance characteristics:
Output
150000 capsules/hr
Machine weight
1500Kg
Machine Dimensions
1175（+382)mm*1230mm*1955mm
Power Supply
380/220V 50Hz
Motor power
8KW(standard)
No.of segment bores
18 holes 2 rows
Vacuum
suction speed:72m3/h,-0.03~-0.05Mpa
Dust
20Kpa 210m3/h
Noise
<75DB（A）
Making rate
Empty capsules 99.8% Full capsules 99.8%
Suitable for Capsule
000、00．0，1，2，3，4．5#
Filling error
±2.5%-±3.5%
Description of performance characteristics:
The CFK-2500 full-automatic capsule filling machine adopts intermittent rotary operation and orifice-disc metering filling, with precise and beautiful design, stable and reliable operation. It can automatically complete various processes such as seeding, dividing, filling, removing waste, locking and exporting finished products. Fully enclosed ten-station turntable, the module is a double-row 18-hole design, is an intelligent equipment for hard capsule production in the pharmaceutical and food industries.
Performance characteristics:
1、The fully enclosed ten-station turntable is easy to clean, non-polluting, stable in operation and high in accuracy.
2、The metering disc adopts a three-dimensional adjustment mechanism to evenly measure the gap between the disc and the copper ring, reduce powder leakage and ensure the difference in filling volume.
3、With a high-precision, high-configuration transmission mechanism, it significantly reduces the vibration of the equipment during operation and greatly improves the stability and service life of the machine.
4、Modular powder filling mechanism, easy to disassemble and assemble, and easy to clean.
5、Newly designed powder feeding device, compact structure, convenient disassembly and assembly, and easy cleaning.
6、The lock capsule cleaning device can remove the fine dust raised when the capsule is locked while the capsule is being locked.
7、The mold cleaning and blowing structure solves the problem that the capsule is difficult to pull out due to the strong sticky powder deposition in the mold plane and cavity during production, and improves the probability of capsule loading.
8、The main electronic control components adopt imported brands, and the advanced control principle ensures the precise realization of various program control and safety protection functions.
9、The man-machine interface is beautiful and dustproof, easy to operate, and complete functions.
