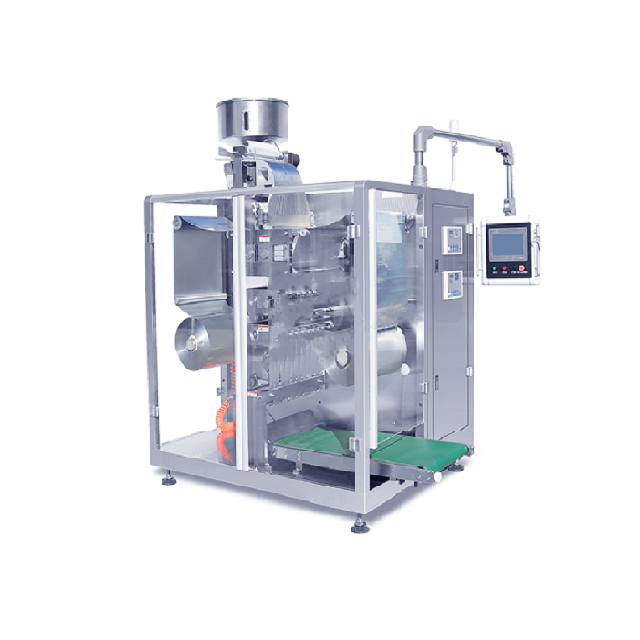

DXDP450 Automatic aluminum packaging machine

DXDP450 Automatic aluminum packaging machine

Product details:

DXDP450 automatic aluminum packaging machine is suitable for the pharmaceutical industry to carry out soft double aluminum shade packaging for single or multiple tablets of tablets, capsules, regular shaped tablets and other types of drugs. The whole machine is controlled by human-machine interface, with safe and stable system, high degree of automation, convenient operation and reliable operation. Photoelectric detection of the color code, mechanical follow label, so as to ensure the integrity and accuracy of the printing pattern position. With automatic printing batch number and longitudinal and transverse break line function, which is easy to install and use. Adopt humanized design concept, so as to realize the number of punching and cutting continuous bags can be set at will, easy and convenient to operate. It can be equipped with automatic detection of missing material and automatic waste picking device to ensure 100% product qualification rate.

Technical parameters:

Package width MAX ： 450mm

Packaging efficiency according to the package

Cross-cutting times MAX ： 90 times/min

Compressed air pressure 0.4 -0.5 MPa

Total power 8KW

Overall dimension (standard) 2000 * 1420 * 2300mm

Weight of the whole machine about 1500kg
