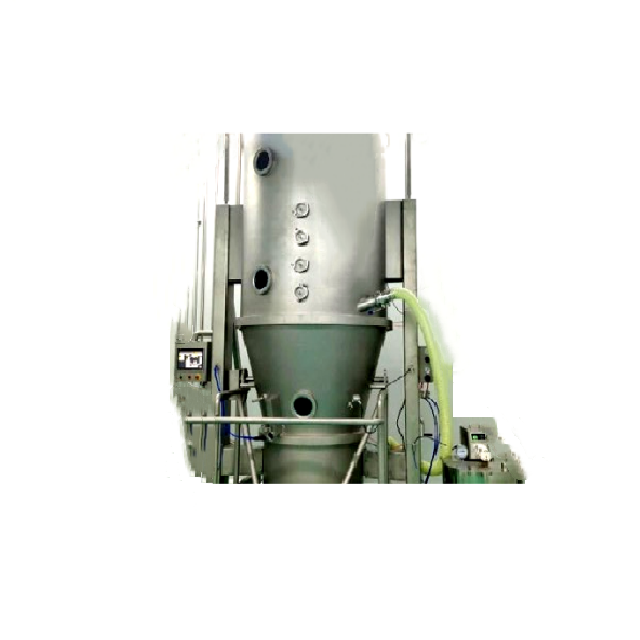

Fluid Bed Dryer and Granulator

Product information

USAGE:

TJ Series fluid bed dryer & granulator is used in pharmaceutical solid dosage area for mixing,granulation and drying application;or drying the wet granules processed from high shear mixer granulator. lt's the major processing equipment in solid dosage production line.The equipment is PLC automation controlled and well satisfies the current GMP and China Pharmacopoeia regulation.

WORKING PRINCIPLE:

The take in air is processed from the inlet AHU unit through three filters and heated,and blow up the material from its air distributor uniformly and dried by the hot air.
In case of fluidized granulation,the binder is sprayed from the peristaltic pump through the spray gun into the

chamber onto the product surfaces. The product coheres together by the binder which forms the binder bridge to form the core granules and grows up then formed. The binder bridge is evaporated away by the hot air and the evenly dried granules formed.

FEATURES:

1. INLET AHU
The inlet AHU consists of G4,F8,H13 filter and heater with accurate temperature control. The inlet air flow is variable controlled by the exhaust air fan motor VFD from the HMI.

2. MAIN BODY STRUCTURE
The  main body structure consists of lower bowl, movable product bowl fluidized chamber,expansion chamber/filter housing.The lower bowl,product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.

3. PRODUCT FILTER
The double structured bag filter in two pieces(in is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.

4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.

5. 2Bar & 10Bar POWDER EXPLOSION
The 2bar and l0 bar powder expIosion proof design is selectable to ensure the operator,equipment and environment safety with reliable grounding device.

6.FLUIDZED GRANULATION
In case of fluidized granulation is requested, the binder solution tank and spray sys with peristaltic pump would be designed and offered. The binder  is sprayed from the peristaltic pump through the spray gun into the chamber onto the product surfaces.The product coheres together by the binder which forms the binder bridge for form the core granules and grows up and formed.The binder bridge is evaporated away by the hot air and the evenly dried granules formed.

The lifting tipping with on-line dry cone mill sys or.vacuum loading mounted on lifter with on-line dry cone mill sys is designed and offered to form the dust free material unloading from fluid bed sys to assure the dry sizing and clean production requirement according to current GMP regulation.

TECHNICAL DATA
