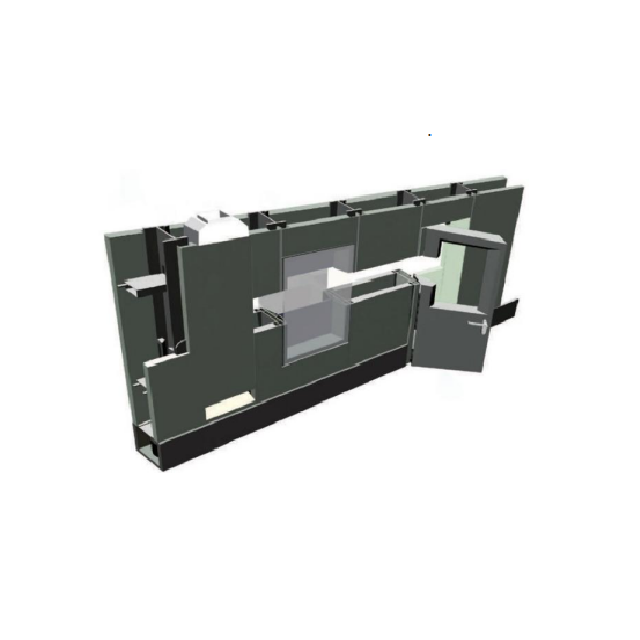

Hollow detachable shrapnel wall series 76/100mm

Standard modulus

960mm.1160mm,non-standard can be customized

Diagonal error

≤1mm

Maximum length of vertical keel

20000mm

Panel material

PE polyester,PVDF (fluorocarbon),salted board,antistatic, conductive,stainless steel,

HDP (High Durability Polyester)

Panel thickness

0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 1.0mm

Filled core material

12mm gypsum board (stone wool needs to be refilled within 4h after fire prevention)

Keel thickness

1.2mm

Protective film

0.06mm thick, more than 0.06mm can be customized

fire resistance

1.0h/4.0h

Connection method

Keel construction, spring buckle
