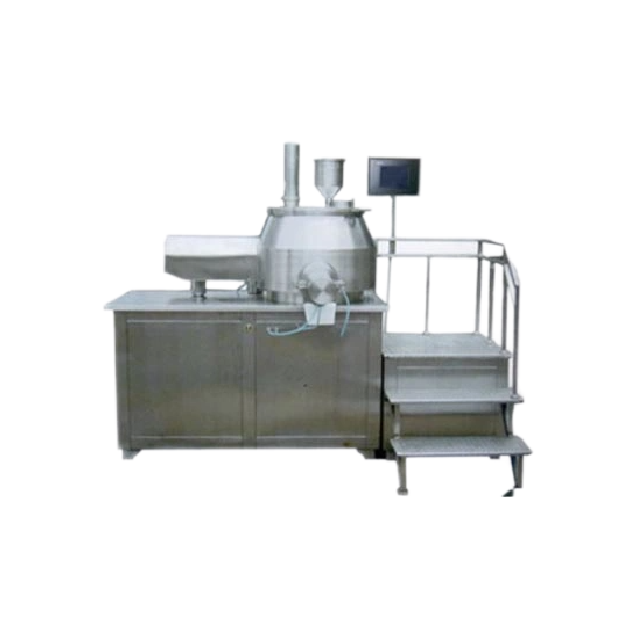

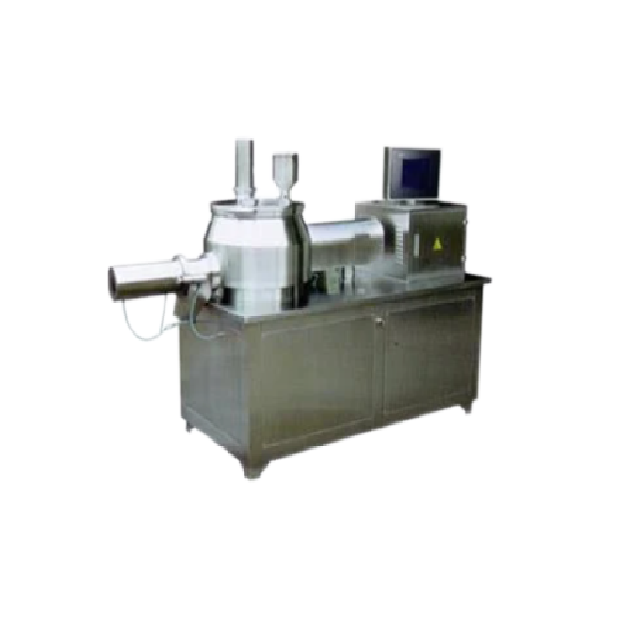

Lab High Shear Mixer Granulator Machine

Applications:
The machine is controlled by program (can be equipped with PLC and Human Machine interface), Unify technology by hand, so as to study the technology parameters.
Stirring paddle and cutter adopt frequency speed regulation. The granule diameter can be controlled easily. Rotating shaft clearance is full of Compressed air, which prevents the rotating shaft trom the dust of material, and the machine has auto-cleaning function.
Conical material groove make the material mix uniformly, cooling temperature of interlayer jacket can be controlled automatically, that improving quality of granule.
Pot lid lift automatically, discharge mouth can be equipped with dryin equipment.
Working principle:
The process consists of two programs including mixing and granulating. Powder material can be changed into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last while opening the hopper outlet, waterish particles are pushed off under the centrifugal effects blade.
Main technical parameters:
