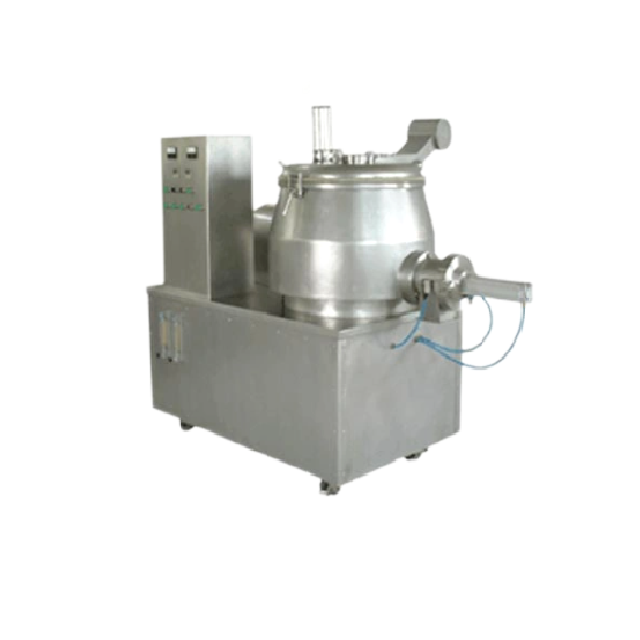

Product Description

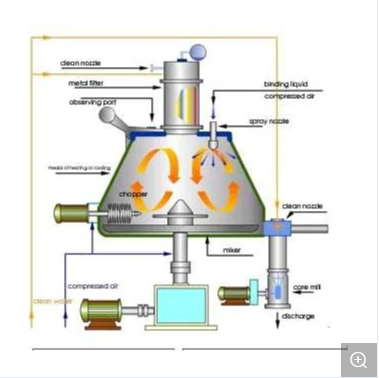

Powder is charged into the bowel of SMG and wetted by a liquid or a melt sprayed from the top nozzle. At the same time, the material is vigorously mixed by a mixer and chopped by a chopper. The wet granules are normally discharged into a core mill before they are dried by a fluid bed drier. The granules made by SMG are rounder and stronger than the granules made by the top spray fluid bed.
The features of the SMG:
Making rounder and stronger granules
Mixing and granulating in one step
Automatic discharge
Improved 'MZ8' shaped Mixer
Closed system measure up with GMP
Save the volume of binding liquid
Save process time
Intelligent control system
SMG Main parameter (as reference) |
| specification | denomination | model |
| TJG-20 | TJG-50 | TJG-100 | TJG-150 | TJG-250 | TJG-300 | TJG-400 | SMG-600 |
| total volume | L | 20 | 50 | 100 | 150 | 250 | 300 | 400 | 600 |
| working volume | L | 14 | 35 | 70 | 105 | 180 | 230 | 280 | 420 |
| capacity | Kg | 3-5 | 10-22 | 25-35 | 45-60 | 75-110 | 90-120 | 120-200 | 240-300 |
| mixer | Rpm | 25-500 | 25-500 | 6-200 | 6-200 | 6-200 | 6-200 | 5-160 | 5-160 |
| motor power | Kg | 1.5-2.2 | 3.7-5.5 | 5.5-7.5 | 7.5-11.5 | 11.5-15 | 15-22 | 22 | 37 |
| chopper | Rpm | 100/3000 | 300/3000 | 300/3000 | 300/3000 | 300/3000 | 300/1500 | 300/1500 | 150/1500 |
| motor power | Kg | 0.37-0.75 | 1.5 | 1.5-2.2 | 2.2-3.7 | 3.7-5.5 | 3.7-5.5 | 5.5-7.5 | 7.5-11.5 |
dimension
(A*B*C) | mm | 1560*540
*1430 | 1900*700
*1600 | 1900*750
*1600 | 2100*850
*1700 | 230*950
*2125 | 2600*950
*2275 | 2700*1200
*2750 | 3600*1450
*3500 |
| the height of dischage port | mm | 700 | 800 | 800 | 850 | 850 | 900 | 900 | 1100 |
| totlat weight | Kg | 350 | 500 | 1050 | 1200 | 1350 | 2100 | 2360 | 2560 |
