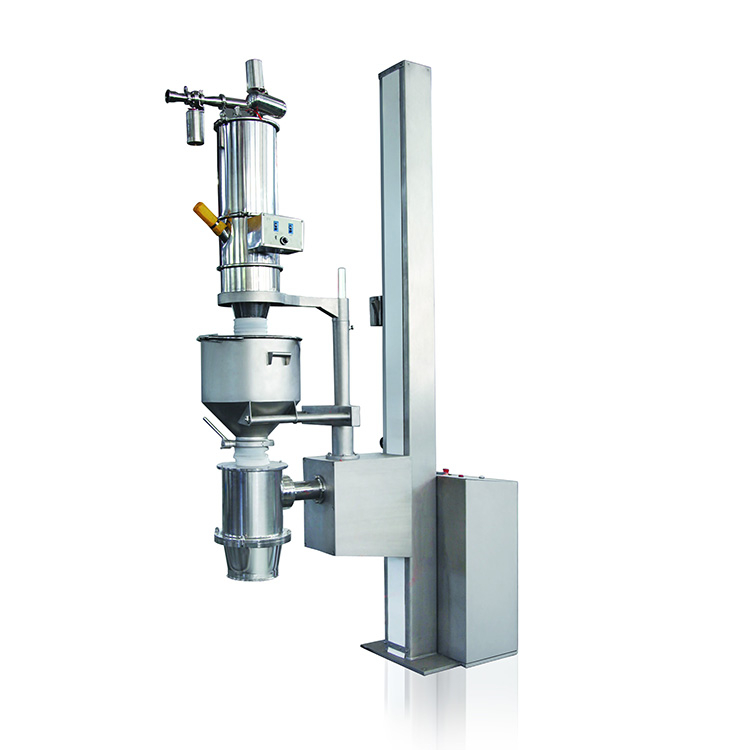

Lifting Tipper With Mill

Availability:

Quantity:



Inquire Add to Basket

Product Description

Usage:

Skyline Lif ting Tippe r with on-line dr y cone mill is used for unloading and transferring the dried or granulated products from material bowl of fluid-bed granulator,and after dry milling then to blender bin or sieving.

Features：

1.Integrated mechanical and electric design with compact reliable structure;

2. Slewing- able post with lifitng c ompac t stru c tu re su i tabl e for granulation suit variation;

3.Full loading & unloading of the product with cone adapter designed according to FBG/FBD material container.

4.Tipper hinged with on-line cone mill height adjustable to match with different size of bin ensure the dust free docking to lower down labor and match with GMP regulation.

Technical data :

Model	kg Max lifitng load	kW Total motor power	On-line cone mill	Max milling capacity kg/h	Weight kg
FZT-50	100	2.05	ZT-100	100	550
FZT-100	100	2.05	ZT-100	100	650
FZT-150	150	4.25	ZT-450	450	750
FZT-200	200	4.95	ZT-450	450	850
FZT-300	300	5.75	ZT-700	700	950
FZT-400	400	5.75	ZT-700	700	980
FZT-500	500	8.25	ZT-1000	1000	1100
FZT-600	600	8.25	ZT-1000	1000	1250
FZT-800	800	8.25	ZT-1000	1000	1380
FZT-1000	1000	9.25	ZT-1000	1000	1450
FZT-1200	1000	9.25	ZT-1000	1000	1500
