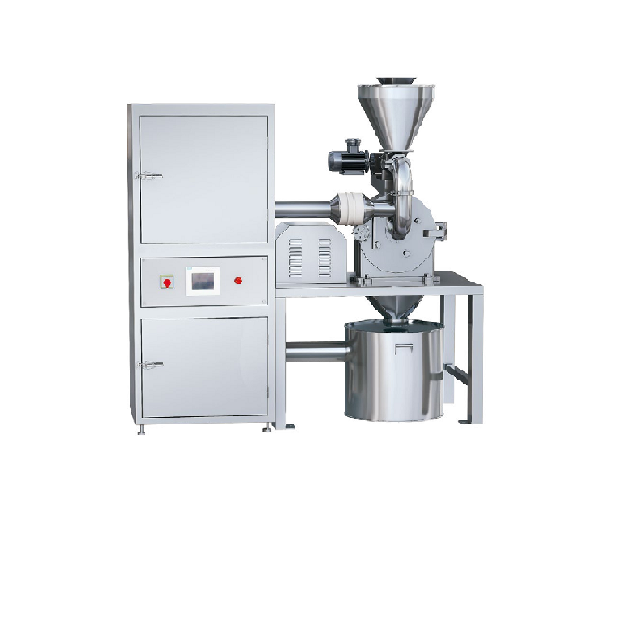

Low-Temperature and Dust-Free Hammer Mill

Model:
TJ-09

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

USAGE:
It's suitable for heat sensitive materials smash.

FEATURES:
This system can meet the requirements of low temperature, dust free and adjustment of granularity. The main measures are that when pulverizing materials, supplying the cold air at the same time, and control the speed of feeding by an adjustable, speed control screw feeder, thus, to make sure that the temperature of crushed material is lower than set value (eg:35 ºC ) in process of pulverizing. Different granularity can be obtained by adjusting speed of rotary knife and replacing different sieve mesh. The powder flows in an airtight system in the whole process, which is collected by separating gas and solid, and then the dust-free exhaust is exhaled.

TECHNICAL DATA:

Production capacity(kg/h) 40-200
Fineness of pulverization (Mesh)	80-120
Granularity of feed material (mm)	<Φ12
Diameter of movable fluted disc (mm)	Φ300
Speed of main shaft (rpm)	3800
Motor power (kW)	7.5
Overall dimension (L×W×H) (m)	2×0.6×1.8
