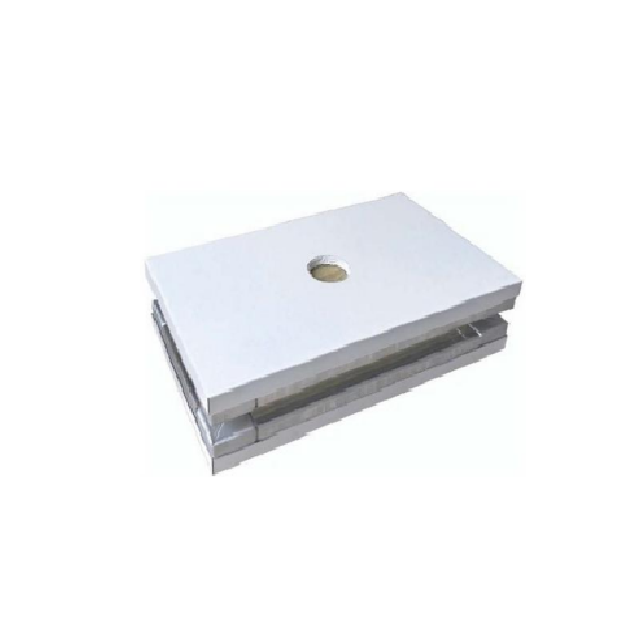

Metal surface double glass magnesium rock wool handmade sandwich panel

Standard modulus

980mm, 1160mm, 1180mm, 1200mm, non-standard can be customized

Diagonal error

≤1mm

The maximum length

≤10000mm

Panel material

PE polyester, PVDF (fluorocarbon), salted board, antistatic, conductive, stainless steel, HDP (high durability polyester)

Panel thickness

0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 1.0mm

Filled core material

Rock wool (bulk density 100K, ≥120K or more can be customized)+double layer 5mm glass magnesium board

Galvanized frame

0.7mm, ≥1.0mm can be customized

Corner pieces

1.0mm galvanized corner pieces

Protective film

0.06mm thick,more than 0.06mm can be customized

Flexural capacity

1.494KN/m²

Bond strength

0.060MPa

Peel performance

≥ 85%—≤ 98%

Heat transfer coefficient

0.832W/m²·K

fire resistance

1.5h

Connection method

Central aluminum connection,male and female socket connection
