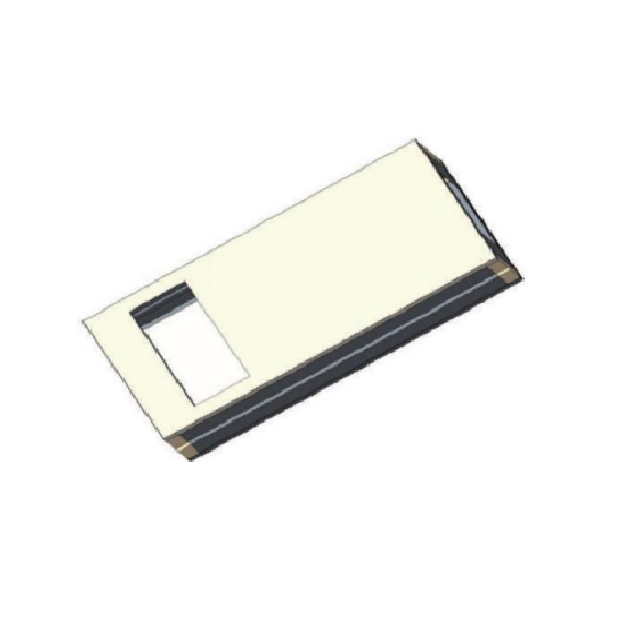

Metal surface double gypsum manual air return wall panel 100mm
Metal surface double gypsum manual air return wall panel 100mm Metal surface double gypsum manual air return wall panel 100mm

loading

Metal surface double gypsum manual air return wall panel 100mm

Share to:
sharethis sharing button
  • 100mm

Availability:
Quantity:

Product details

Physical properties parameters

Wall thickness

100mm

Standard modulus

960mm, 1160mm, non-standard can be customized

Diagonal error

≤1mm

The maximum length

≤10000mm

Panel

material

PE polyester,PVDF (fluorocarbon),salted board,antistatic, conductive,stainless steel,

HDP (High Durability Polyester)

Panel thickness

0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 1.0mm

Filled core material

Double 12mm gypsum board

Galvanized frame

1.0mm

Corner pieces

1.0mm galvanized corner pieces

Protective film

0.06mm thick, more than 0.06mm can be customized

Connection method

Central aluminum connection
