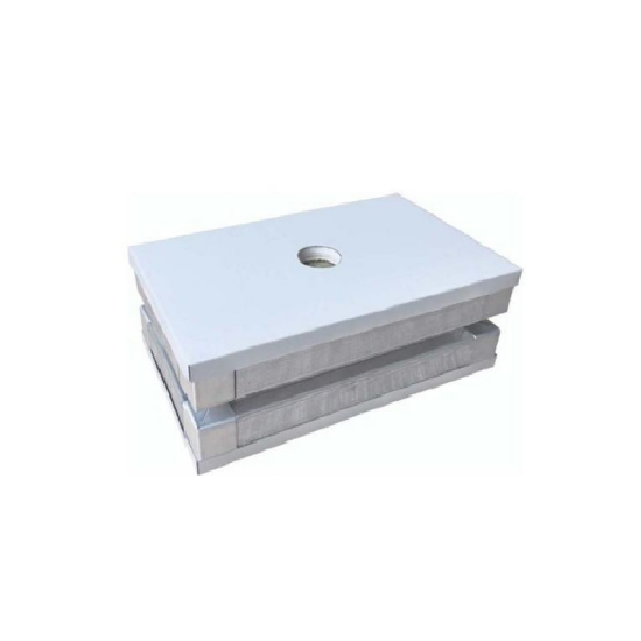

Metal surface double-sided gypsum rock wool handmade sandwich panel

Standard modulus

980mm、1160mm、1180mm、1200mm.non-standard can be customized

Diagonal error

≤1mm

The maximum length

≤10000mm

Panel material

PE polyester, PVDF (fluorocarbon), salted board, antistatic, conductive, stainless steel, HDP (high durability polyester)

Panel thickness

0.426mm、0.45mm、0.476mm、0.5mm、0.6mm、1.0mm

Filled core material

Rock wool (bulk density 100K, ≥120K or more can be customized) + double layer 9.5mm gypsum board

Galvanized frame

0.7mm, ≥1.0mm can be customized

Corner pieces

1.0mm galvanized corner pieces

Protective film

0.06mm thick, more than 0.06mm can be customized

Flexural capacity

1.2KN/m²

Bond strength

0.063MPa

Peel performance

≥ 85%—≤96%

Heat transfer coefficient

0.43W/m²·K

fire resistance

2.0h

Connection method

Central aluminum connection
