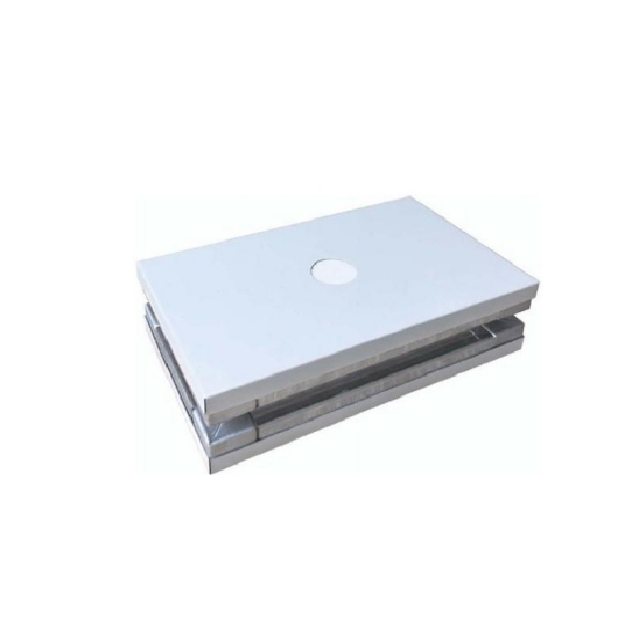

Metal surface magnesium oxysulfide manual sandwich panel

Standard modulus

980mm, 1160mm, 1180mm, 1200mm, non-standard can be customized

Diagonal error

≤1mm

The maximum length

≤10000mm

Panel material

PE polyester,PVDF (fluorocarbon),salted board,antistatic, conductive,stainless steel,HDP (high durability polyester)

Panel thickness

0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 1.0mm

Filled core material

Magnesium oxysulfide (200Kg/m³, more than 200Kg/m³ can be customized)

Galvanized frame

0.7mm, ≥1.0mm can be customized

Corner pieces

1.0mm galvanized corner pieces

Protective film

0.06mm thick, more than 0.06mm can be customized

Flexural capacity

1.483KN/m²

Bond strength

0.068MPa

Peel performance

≥ 85%—≤93%

Heat transfer coefficient

0.85W/m²·K

fire resistance

1.0h

Connection method

Central aluminum connection, male and female socket connection
