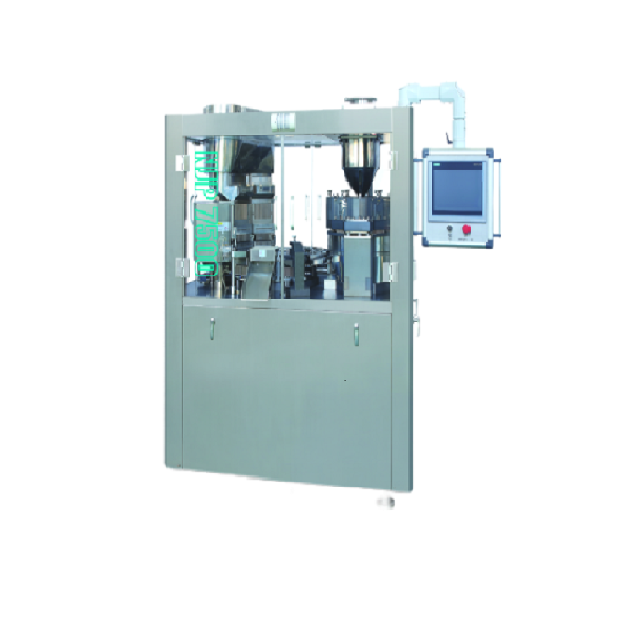

NJP-7500

Performance characteristics:

The NJP-7500 fully automatic capsule filling machine, with intermittent rotary operation, hole and disc type metering and filling, has a precise and beautiful design, stable and reliable operation. It can automatically complete various processes such as capsule sowing, capsule dividing, filling, rejecting waste capsules, locking capsules and exporting finished products. The fully enclosed twelve-station rotary table with three rows of 54 holes in the module makes this machine a special machine for the production of high volume hard capsule filling.

■ Performance features:

Original use of RU250 and RU140 high precision gap indexing boxes reasonably matched.

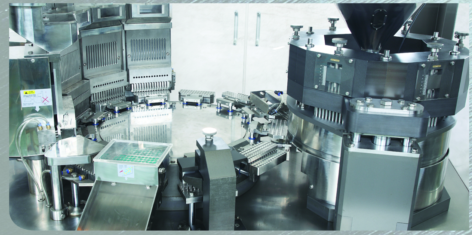

Fully enclosed twelve-station rotary table, easy to clean, no pollution, and smooth operation, high precision.

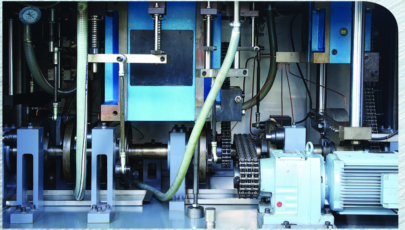

With high precision, high configuration of the transmission mechanism, significantly reduce the vibration of the equipment when running, greatly improving the stability and service life of the machine.

Locking capsule cleaning device, which can remove the fine dust raised during locking while the capsule is being locked.

5、The mould cleaning and blowing structure can solve the problem of difficult to pull off the capsule due to the deposition of strong sticky powder in the mould plane and mould cavity during production, which improves the capsule loading rate.

6、Adopting four rows of silica gel pads, no need for air source, no dust flying out of the capsule device.

7、New waste picking device, suction and blowing synchronously, greatly increasing the success rate of rejecting waste capsules.

8、The main electric control components are imported brands, and the advanced control principle ensures the precise realization of the program control and safety protection functions.

9、The man-machine interface is beautiful and dustproof, easy to operate and fully functional.

Technical parameters：
