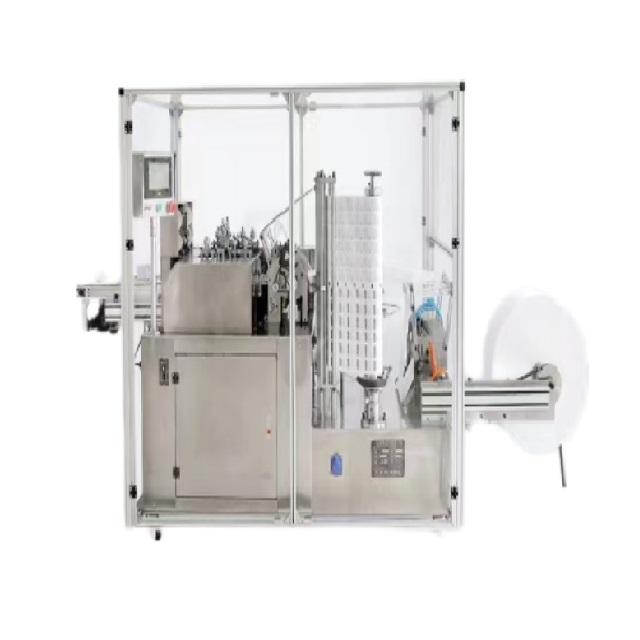

ODF/OTF automatic packing machine
The technical specifications of the orally dissolving film automatic packaging machine are as follows:
1. Packaging Speed: The machine is capable of packaging at a high speed of up to 200 packs per minute, ensuring efficient production.
2. Film Width: The machine supports a film width range of 40mm to 120mm, providing flexibility in packaging various sizes of oral dissolving films.
3. Film Thickness: It can handle films with a thickness range of 0.02mm to 0.06mm, ensuring proper sealing and protection of the films.
4. Power Supply: The machine operates on a 220V, single-phase power supply, ensuring compatibility with standard electrical systems.
5. Power Consumption: With an energy-efficient design, the machine consumes approximately 3.5kW of power, optimizing energy usage.
6. Machine Dimensions: The machine has a compact design with dimensions of 1200mm (length) x 1000mm (width) x 1400mm (height), facilitating easy installation and operation.
7. Weight: The machine weighs approximately 500kg,providing stability during operation.
8. Automation Level: It is a fully automatic machine, equipped with advanced PLC control and touchscreen interface, ensuring easy operation and minimal human intervention.
9. Packaging Material: The machine is compatible with various packaging materials,including aluminum foil and plastic films,enabling versatile packaging options.
