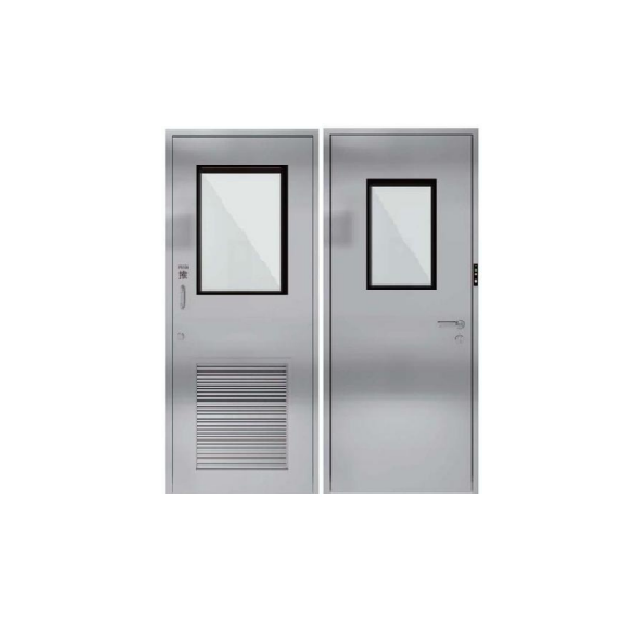

Purification Aluminum Alloy Airtight Door

Model:
TJ 001

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product details

Structural style
Purified stainless steel is made of stainless steel plates by bending and pressing. The three sides are sealed with self-foaming rubber strips, and the bottom is sealed with automatic lifting dust sweeping strips. It is a product designed for clean rooms that need good sealing!

Production

Standard size	9002100/12002100/1500*2100 (non-standard can be customized)
Door opening direction	Single door (left opening, right opening), son-mother door (left opening, right opening), double door
Door frame structure	Flat frame type, wafer type
Material thickness	Door frame: 1.5mm 1.2mm stainless steel plate; door leaf: 1.0mm stainless steel plate;
Thickness of door leaf	Inside reinforcement board: 1.2mm galvanized steel sheet
Door filler	50mm (the thickness of the door frame can be customized according to requirements)
Window on the door	Flame retardant paper honeycomb, aluminum honeycomb, rock wool
	Right-angle double-layer windows, rounded double-layer windows, double-layer windows outside and inside
	Window standard size: 400*600mm; printing silk color: white or black;
	Glass performance: 5mm tempered (fireproof optional); window built-in desiccant and filled with inert gas
Hardware Parts	Lock body: split handle lock, one-piece handle lock, elbow pressure lock, escape lock, etc.
	Hinge: 304 stainless steel detachable hinge
	Door closer: exterior type, built-in type (the form can be divided into positioning and non-positioning)
	Interlock: electromagnetic lock (external), electric mortise lock (embedded)
sealing strip	Door leaf glue injection self-foaming sealing strip, lifting dust strip at the bottom of the door leaf
