Rock wool handmade sandwich panel

Model:
50mm

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product details

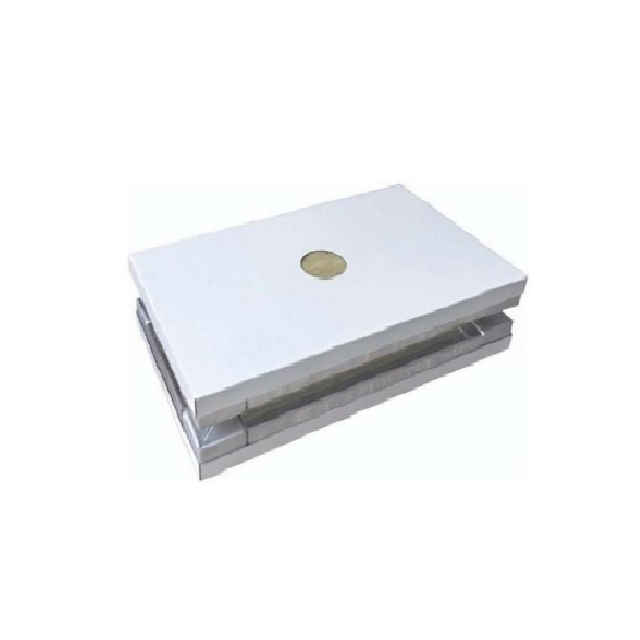

Rock wool handmade sandwich panel

The 50mm metal surface rock wool hand-made sandwich panel adopts color-coated or stainless steel plate as the panel, and the edges are sealed by galvanized steel strips and galvanized corners, filled with rock wool as the inner core layer, and manufactured by heating, pressurizing, curing and other processes Become.

Physical properties parameters

Wall thickness	50mm
Standard modulus	980mm, 1160mm, 1180mm, 1200mm, non-standard can be customized
Diagonal error	≤1mm
The maximum length	≤10000mm
Panel material	PE polyester, PVDF (fluorocarbon), salted board, antistatic, conductive, stainless steel, HDP (high durability polyester)
Panel thickness	0.426mm, 0.45mm, 0.476mm, 0.5mm, 0.6mm, 1.0mm
Filled core material	Rock wool (bulk density 100K, ≥120K or more can be customized)
Galvanized frame	0.7mm, ≥1.0mm can be customized
Corner pieces	1.0mm galvanized corner pieces
Protective film	0.06mm thick, more than 0.06mm can be customized
Flexural capacity	0.89KN/m²
Bond strength	0.07MPa
Peel performance	≥ 85%—≤ 96%
Heat transfer coefficient	0.84W/m²·K
fire resistance	1.0h
Connection method	Central aluminum connection,male and female socket connection
