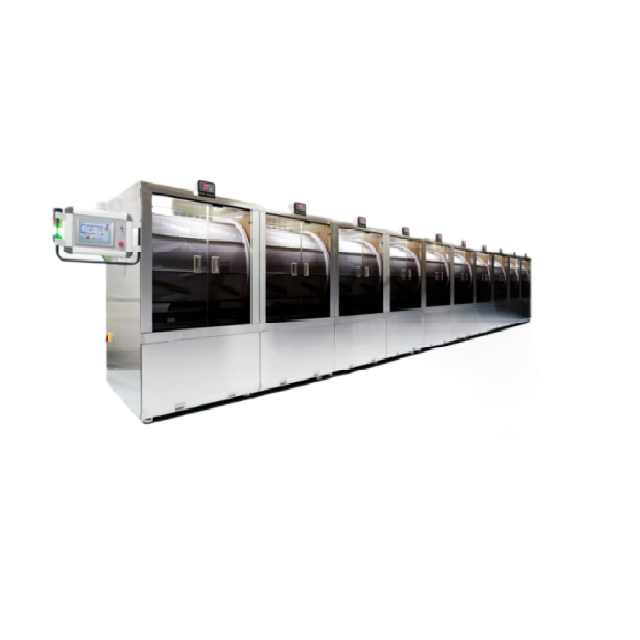

TJ 100-II
Availability: | |
---|---|
Quantity: | |
Features:
1.Tumbled dyer is equipped with dehumidification system
2.No drying room is needed
3.Drying time is greatly reduced
4.Fewer people are needed
5.Very efficient and beautiful
6.The area of drying workshop is greatly reduced
7.The parts in contact with the soft capsules are made of stainless steel fixed to GMP and FDA standard
8.Quite easy to operate with touch screen(Siemens)
Specification(2 tumblers as 1 unit):
Model | TJ 75-I | TJ 100-II |
Dimension (2 tumblers) | 2400x1163x1789mm | 2620X1450X2050mm |
Loading Qty | 90kg (maximum) | 130kg(maximum) |
Power | 14Kw,380V/60Hz/3Ph(can be modified as needed) | 15Kw,380V/60Hz/3Ph(can be modified as needed) |
Rotating Rate | 0-20RPM | 0-20RPM |
Tumbler Size | φ750x1000mm | φ1000x1200mm |
Air Output of Fan | 3120 CBM/H | 4680CBM/H |
Control | Touch screen+PLC | Touch screen+PLC |
