Product Description
Main purpose

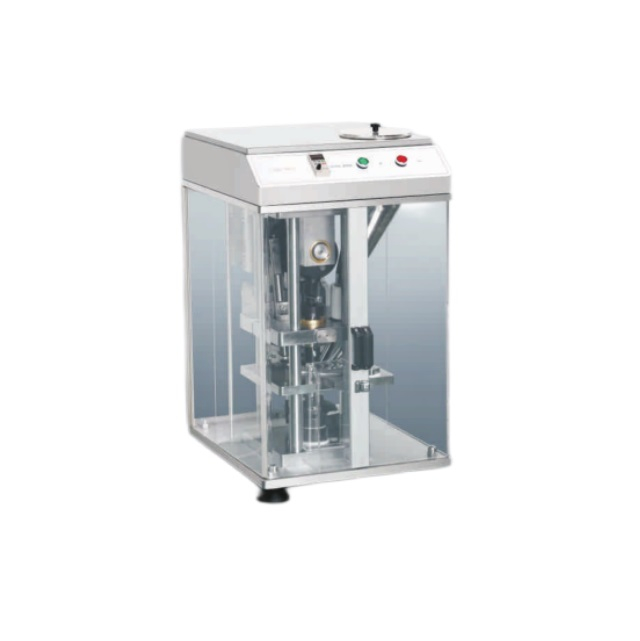

Researched and developed successfully by absorbing advanced technologies from abroad, the machine is a continuous automatic tablet press used for pressing powder and granular raw materials into tablets in such industries as medicine,chemical industry.Electronics and food.With high utilization rate of materials,reasonable
structure.Convenient operation low volumehigh pressure. low noise.Little difference in tablet weight.continuous adjustment of filing depth of materiais and tablet thickness,all performance indexes of this machine reach the level of an imported one. Fully conforming to requirements for pharmaceutical sanitation in China,it is a preterred
machine forscientific research institutes pnarmaceutical plant process rooms and hospital preparation rooms.The machine adopts many novel designs during its designing process,so as to ensure that the production process is safer and more standard.
Main feature
The fully closed machine avoids dust cross contamination and conforms to GMP requirements.The safety protective device adopts more reasonable user-friendly design.The machine has wider operation space.With prominent bearing capacity,it is suitable for production of a wider range of tablets.
Technical parameters
Model | TJ-12 | TJ-25 |
Punch quantity(sets) | 1 | 1 |
Max.tablet diameter(mm) | 12 | 25 |
Max.output(tablets/minute) | 60 | 60 |
Max.main pressure(kn) | 50 | 50 |
Max.filling depth(mm) | 20 | 20 |
Max.tablet thickness(mm) | 8 | 8 |
Motor power(kw) | 220V/50HZ,1.1kw | 220V/50HZ,1.5kw |
Overall size(mm) | 550x450x750 | 580x500x830 |
Machine weight(kg) | 100 | 150 |
