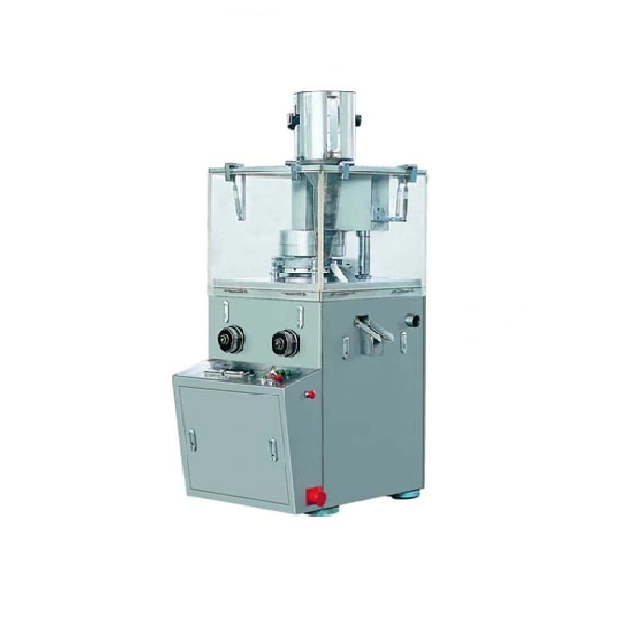

TJ 17 Rotary Tablet Press Single Punch Machine

TJ 17 Rotary Tablet Press Single Punch Machine

Model:
TJ 17

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Usage:
This is a singe-pressure, automatic-rotation continuous tablet extruder, newly developed in our factory, used for the production of normal-or abnormal-shaped tablets out of granular materials, applicable mainly in the pharmaceutical industry and in the chemical, food, electronic, plastic and powder metallurgical industries as well.

Characteristics:

Fitted with an all-enclosed housing made of stainless steel to meet the requirements specified in GMP standard.
Provided with a transparent glass window, convenient in clear observation of the machine working and easy to be opened for internal cleaning and maintenance.
Characteristic of high pressure, large range of the tablet diameter and suitability for the production of normal-, abnormal-, and ring-shaped tablets, and special adaptability to multiple products in small quantities.
Advantageous in the introduction of electromechanical integration and installation of all the controllers and the adjustment devices on one side of the machine for easy operation.
Equipped with a pressure overload protection apparatus to prevent any damage to the machine.
Adoption of an oil immersion transmission system mounted in its sealed state under the machine body for the extension of its service life and prevention of any cross pollution possible.

Specifications:

Die amount: 17pcs
Max. Pressure: 60KN
Max.Depth: 17mm
Max.Diameter: 20mm
Max.Depth: 15mm
Max. Thickness: 6mm
Rotary Quantity: 37r/min
Capacity: 40000pcs/h
Motor: 2.2KW 380V 50HZ 90r/min
Overall Dimensions: 615mm*890mm*1415mm
Weight: 1000KG
