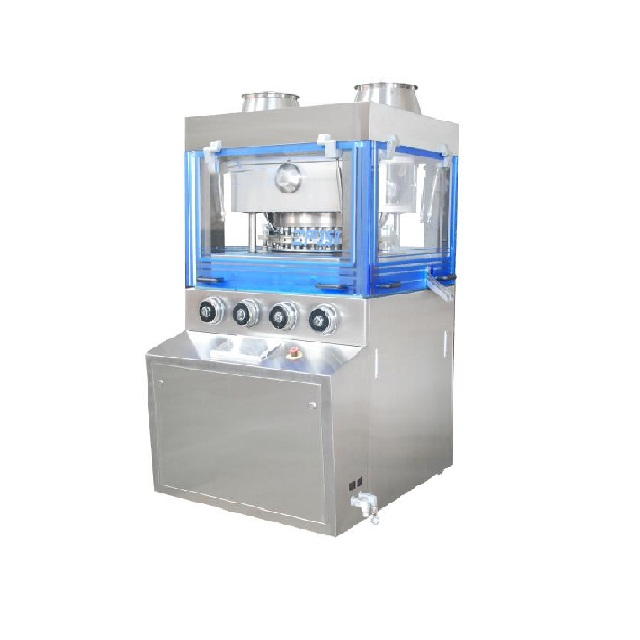

TJ 35B Series Rotary Tablet Press
Product details
Features:
1. Frequency variable continuous adjustment of speed.
2. PLC programmable control with color touch screen operating panel being convenient and direct
3.Main compression overload protection
4.GMP compliant with operations being simple and cleaning easy
5.CE compliance is optional.
·
Main Technical Specifications
Series | TJ35B Series | ||
Model | TJ35/2 | ||
Number of stations | 35 | ||
Punch type | ZP | ||
| Round tablet | mm | 13 |
Abnormal shapes shaft size | mm | 13 | |
Max. depth of filling | mm | 15 | |
Max. Speed of turret | r/min | 36 | |
Max. output | Tablets/h | 150000 | |
Max. thickness of tablet | mm | 6 | |
Max. compression force | kN | 60 | |
Max. Pre-compression force | kN | 5 | |
Power supply | V/Hz | AC 380/50/3 | |
Main motor power | kW | 3 | |
Foot print | mm×mm | 910×1120 | |
Height of the machine | mm | 1650 | |
Weight of the main machine | kg | 2200 |
