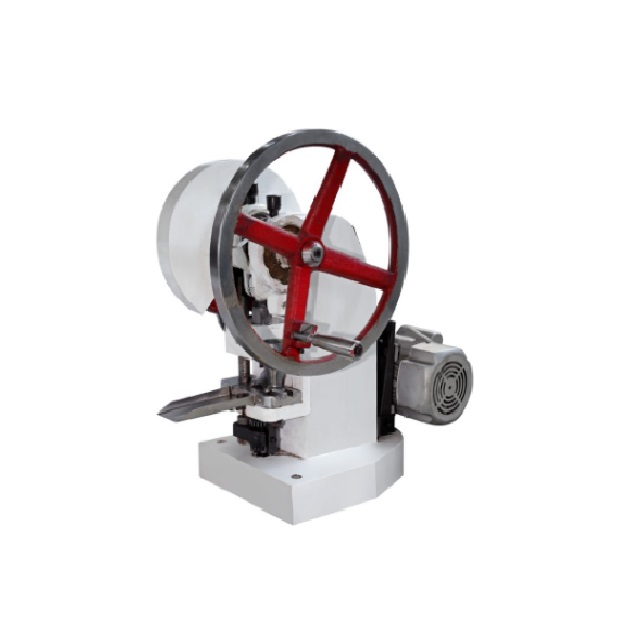

TJ-5 Single punch pill press tablet press

TJ-5 Single punch pill press tablet press

Model:
TJ 5

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Main Purpose

The machine is used to press granular raw materials into tablets.It is widely applied for trial production and small batch production in pharmaceutical plants,chemical plants,food　plants,hospitals,scientific,research,institutes and laboraotories.

Main feature

With excellent performance,good adaptability,convenient use,easy maintenance,small volume and light weight,

the machine can also realize tablet pressing by manual rocking in case of power failure.The machine is installed with only one set of punches,and the material filling depth and tablet thickness can be adjusted.Through the

replacement of punches,tablets of different shapes and sizes can be made,so as to meet the needs for making various kinds of TCM and western medicine tablets in the pharmaceutical industry and making various kinds of similar products in other industries.The machine has been deeply favored by users in various industries.

Technical parameters

Model	TJ-1.5	TJ-5	TJ-6
Max.tablet pressure(kn)	15	50	60
Max.tablet diameter(mm)	12	20	25
Max.filling depth(mm)	12	16	16
Max.tablet thickness(mm)	6	6	6
Production capacity(Pc/h)	6000	6000	5000
Motor power(kw)	0.37	0.75	1.1
Overall size(mm)	700x370x800	700x400x800	700x500x900
Machine weight(kg)	60	125	140
