Product Description
Main purpose

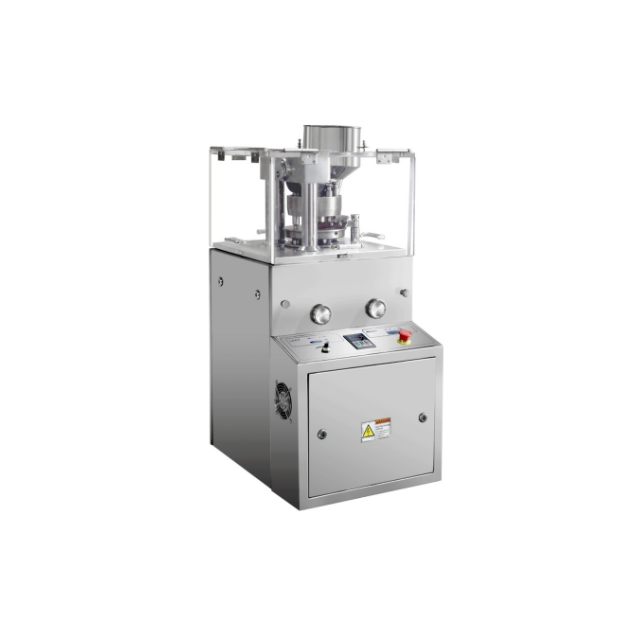

The machine is a single-pressing type machine with automatic rotation and continuous tablet pressing used
to press granular raw materials into various tablets.lt is mainly used for tablet production in the pharmaceutical industry, and is also used in chemical industry,food,electronics and other industries. The peripheral housing adopts a fully closed form.It is made of stainless steel.The internal table surface is made of stainless steel.The turret surface is subject to special treatment to maintain luster on the surface.And avoid cross contamination. conforming to GMP requirements. The transparent doors and windows installed enable the tablet pressing status to be clearly observed. In addition. they can be opened to make internal cleaning and maintenance easy. All controllers and operating parts are reasonably arranged. The variable frequency speed controller is adopted for electrical speed control with convenient operation stable rotation and good safety and accuracy. All driving devices are located inside the machine,so the machine is kept clean.It is equipped with the overload protective device to make the machine stop automatically in case of pressure overload.The machine is equipped with electromagnetic braking motor and other safety protective devices,so the machine can be adjusted and operated during its running.
Technical parameters
Model | TJ-5B | TJ-7B | TJ-9B |
Punch quantity(Sets) | 5 | 7 | 9 |
Max.tablet pressure(kn) | 60 | 60 | 60 |
Max.tablet diameter(mm) | 20 | 20 | 20 |
Max.filling depth(mm) | 15 | 15 | 15 |
Max.tablet thickness(mm) | 6 | 6 | 6 |
Turret rotation speed(r/min) | 30 | 30 | 30 |
Production capacity(Pc/h) | 9000 | 12600 | 16200 |
Motor power(kw) | 2.2 | 2.2 | 2.2 |
Overall size(mm) | 480*630*1100 | 480*630*1100 | 480*630*1100 |
Machine weight(kg) | 320 | 320 | 320 |
