BX-600 Hand Feeding Automatic Water Bottle Blowing Machine

TJ-600 Hand Feeding Automatic Water Bottle Blowing Machine

Model:
TJ-600

Availability:

Quantity:



Inquire Add to Basket

Product Description

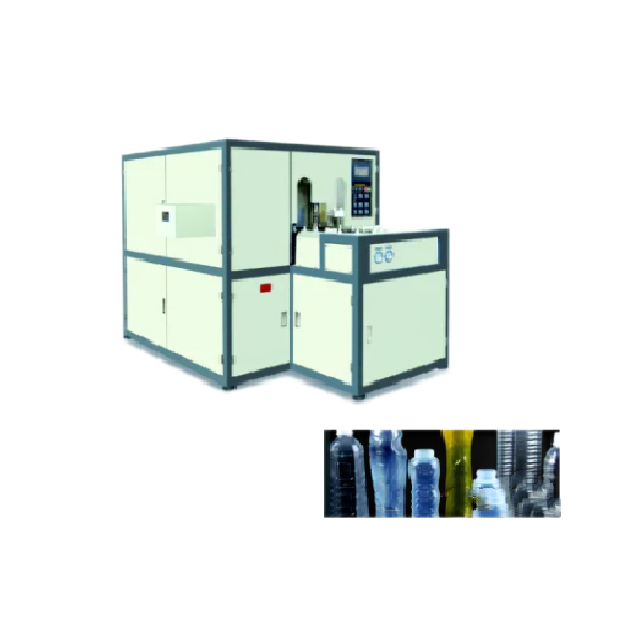

TJ-600 Hand Feeding Automatic Water Bottle Blowing Machine

Product Description

Advantages: preforms feeded by hand and bottles heated and blowed automatically; no technical requirement from this worker; hourly capacity from 1100 to 1300PCS; lower cost than usual automatic machines while enjoying stable performance.

Item		unit	TJ-600
Production specification	Max. container volume	L	0.6
	Max. neck diameter	mm	70
	Max. container diameter	mm	85
	Max. container height	mm	280
	Number of cavity	pcs	1
	Theoretical output	bph	1200-1300
Electrical	Max. heating power	kw	18
Electrical	Installation power	kw	18.5
Compressed air	Operating pressure	Mpa	7
	Low pressure consuming	L/min	1000
	Blowing pressure	Mpa	≤ 30
	High pressure consuming	L/min	1200-1500
Chiller water	Operating pressure	Mpa	0.3-0.5
	Temperature	c	3-10
	Flow rater	L/min	30
Machine dimension	Machine dimension	m	2.2× 1.65× 1.8
Machine dimension	Machine weight	kg	1300
