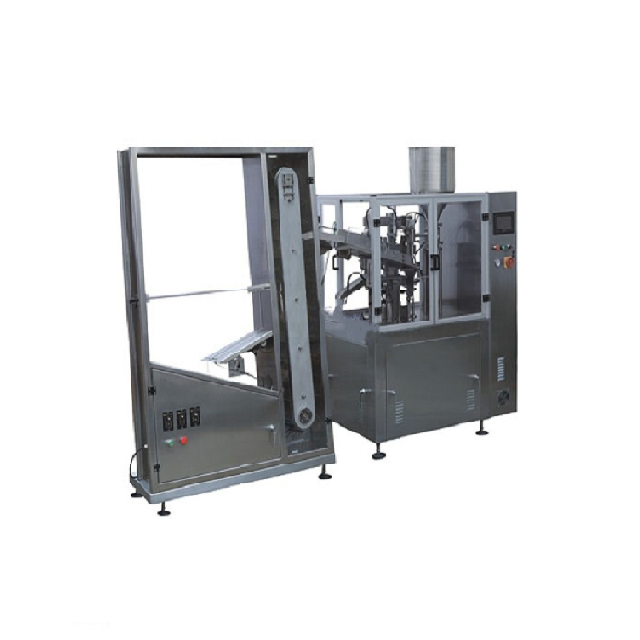

TJ-60A Automatic feeding machine
Introduction:
TJ-60A Automatic tube filling & sealing machine is import foreign advanced technique,specially designed according to technology of cosmetics, ointment cream products,machine include automatic tube feeding,heating,sealing,pretreatment system,filling adopt mechanical piston, electrical control system and operation platform system.
-No tube no filling
-Have counting function and point function when reach set amount
-Error alarm,stopping and alarm in case of door opening,stopping and alarm for too low main air pressure,alarm function for overloading,
-Emergency stop
-Automatic print batch number,Automatic tube dischargingl
-Automatic tube feeding, automatic benchmarking.
-Automatic filling,tail cutting function for viscous material
-Main drive system located at the bottom of the machine table,safe and no pollution
-Filling and sealing part are installed in a semi-closed and no static electricity's transparent cap,and installed in the platform,easy to observation and operation
-Smooth and flat surface, free of dead corner, being innoxiously and non-smell, free of pollution, easy cleaning, and easy maintenance and servicing.
-Compact structure, simple and convenient operation, the machine is applicable to many industries such as medicine, food and daily chemical industry etc
Features and parameters:
Operation speed:60/min(max)
Filling volume:5-250ml
Filling precision:≤ ± 1%
Suitable tube length:50-210mm
Sutable tube diameter :Φ13-50mm
Standard configuration: obiquely hanging type automatic lining-up tube feeding storehouse
Standard configuration: saddle folding and sealing device, which can realize
three-side and four-side folding through adjustment
Optional:jacket and barrel heat preservation device
Optional:blending device inside the barrel
Optional:automatically controlled material feeding device(pupm)
Optional:finished tube conveyor
