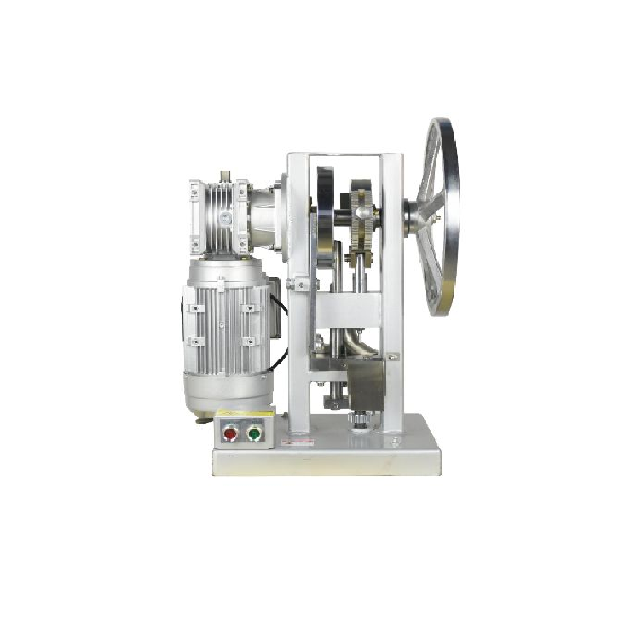

TJ P-6 single-punch tablet press

Product information

Product Profile：

TJ P-6 single-punch tablet press is a minitype desk type tableting machine, driven by

motor and can continually punch various tablets.The machine can punch fine grain and

coarse powder into circular tablets or irregular shape tablets; and it can be used for

laboratory production or small batch production of tablets, sugarcoated tablets, calcium

tablets, irregular shapes,etc..The machine is applicable to punch large grain solid, wet or

extremely fine powder.The machine is simple in structure, convenient for operation and

in high automatic degree, applicable to punch tablets of different shapes.

Technical Parameters：

Max. Pressure (Kn） 0-60

Max. Dia. of Tablet (mm) 5-20

Max. Depth of Fill (mm) 0-18

Max.Thickness of Tablet (mm) 0-7

Production Capacity (pcs/h) 4000

Power of Motor(Kw) 1.5

Overall Size(mm) 500*410*680

Net Weight (Kg) 85
