Product details

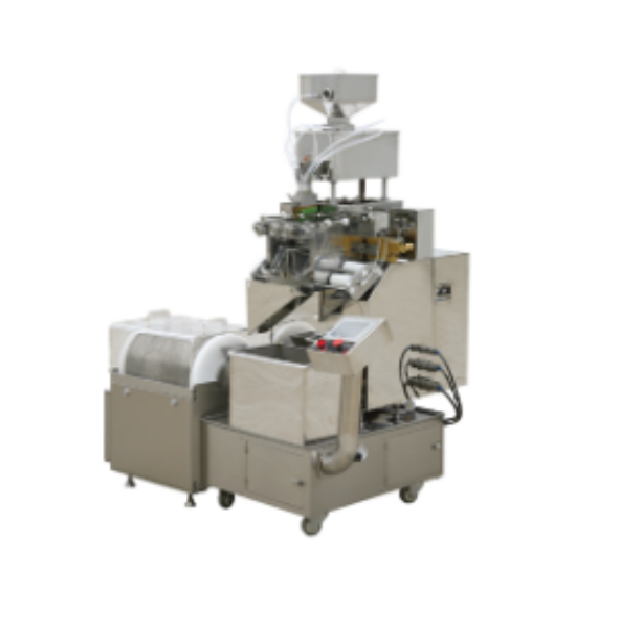

TJ-100 Softgel Encapsulation Machine
Tech Data：
Main machine
Capacity:10,000-16,000 grain/h,500mg of the load.
Dimension: Φ64x100mm
Die Roller Speed: 0-4rpm Stepless Speed Adjust
Material Feeding Quantity: 6 X (0-1.5)mL
Power: AC380V 50Hz 1.5kW
External Size: 620×660×1350mm
Weight:400kg

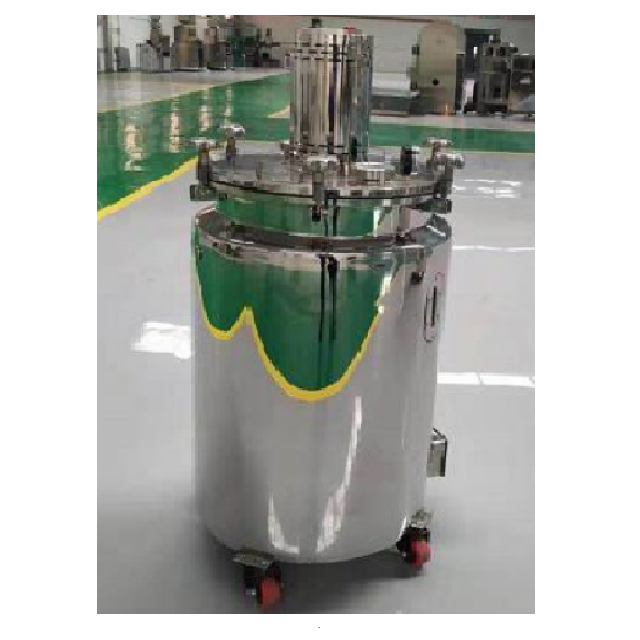

TJ-80 Gelatin Melting Vacuum Stirring Tank
TJ-80 Gelatin Melting Vacuum Stirring tank is a kind of thermo-control water bathing type heating agitating vessel. Particularly suitable to soft capsule experimental production center for the technology of colloidal solution. It can be used for colloid solution, colloid storage, and conduct ground-pressure colloid convey through pressure Control.
Tech Data：
Inner Effective Capacity:80L
Working Temperature: Room temp～＋95℃
Stirring Motor Power:120W AC 220V
Stirring Speed: 21.6r/min
Tank Inside Allowed Pressure:-0.09～0.06MPa
External Dimension:Φ600×1300mm
Weight:75kg

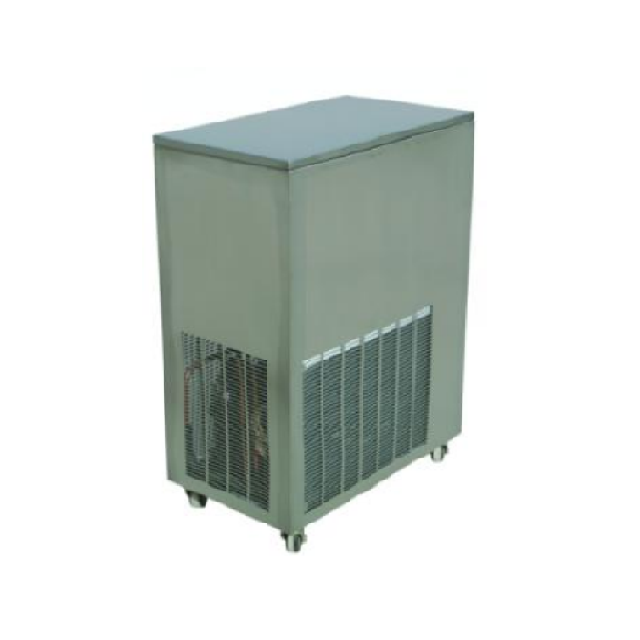

Water Chiller
The Water Chiller controls compressor start-up and shutdown through autmatic temperature regulation and the coolant Temperature can be controlled.It is the auxiliary equipment for softgel machine.
Tech Data：
Coolant Capacity：55L
Coolant Type：-40℃
Connector Size：G1/2”
Power：AC220V 50Hz 1.5kW
External Size：650×360×850mm

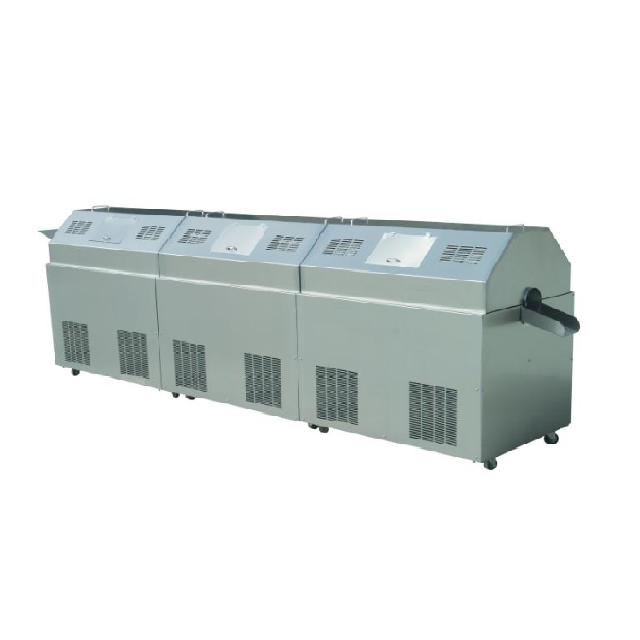

Tumble Dryer (Model TJ-3)
TJ-3 Tumble Dryer is mainly used for shaping fixing drying.It is fully complicated with GMP requirements.Each section of the dryer is individually set up with forward and reverse adjustment driven and blower and could be used separately or combine several sections as a whole unit.
Tech Data For One Section：
Size of rotating cage：Φ610×960mm
Rotation rate of rotating cage：18rpm
Power：AC380V 50Hz 2.2kW
Wound rate of fan：50m3/min
External Size：1040×760×1180mm
Softgel Inspection Table
Tech Data：
Power: 220V 50Hz 60W
External size: 1000 x 1000 x 700mm
Weight: 30kg
