TJ250FI Pharmaceutical Flat Type AL/PL Tropical Blister Packing Packaging Tablet Pill Softgel Capsule Machine

TJ250FI Pharmaceutical Flat Type AL/PL Tropical Blister Packing Packaging Tablet Pill Softgel Capsule Machine

Model:
TJ250FI

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product details

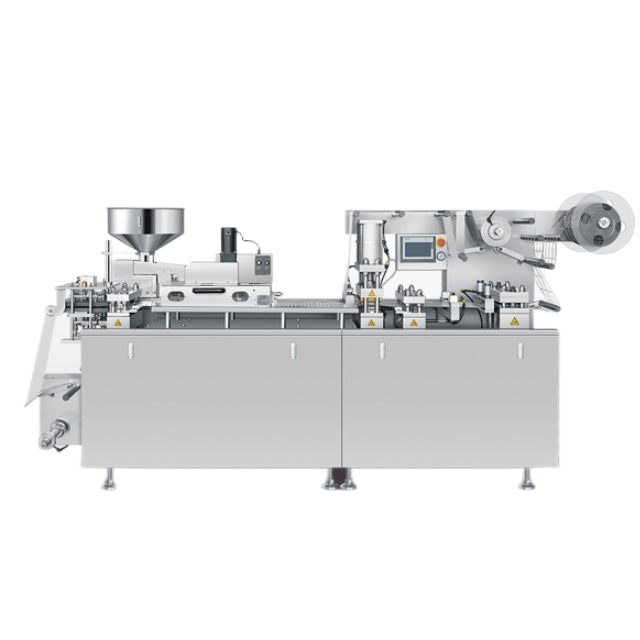

TJ250FI Flat Type AL/PL Blister Packing Machine

1.Worm wheel Reductor: Main machine overloading protect with lower noise and stabile running.
2.Adjustable range of stroke: Can change the stroke dimension freely to suitable more kinds of product.
3.No waste material cutting station can save material cost about 0.02-0.025 million (option).
4.Double orientation shafts with spline shaft transmission adopted to ensure synchronization stabile running.
5.Touch screen with PLC block adopted,stabile operation and easy maintenance(option).

TJ250FI Main Technical Parameter

Main Technical Parameter
Capacity(Cycle/min)		20-50
Range of stroke(mm)		40-120
Packing material	Pharmacy PVC(mm)	(0.2-0.4)×250
	PTP alu foil(mm)	(0.02-0.05)×250
Clean compressed air(pressure)		0.5～0.7Mpa
Air consumption(m³min)		≥0.3
Power		AC380V 50HZ 7.5 KW
Water chiller for moulds		Tap water or recycle water with 60l-/h consumption
Overall dimension(L×W×H)(mm)		3390×650×1650
Net weight(kg)		1700
