TJ250FIII Pharmaceutical Flat Type Tropical Blister Packing Packaging Tablet Pill Softgel Capsule Machine

TJ250FIII Pharmaceutical Flat Type Tropical Blister Packing Packaging Tablet Pill Softgel Capsule Machine

Model:
TJ250FIII

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product details

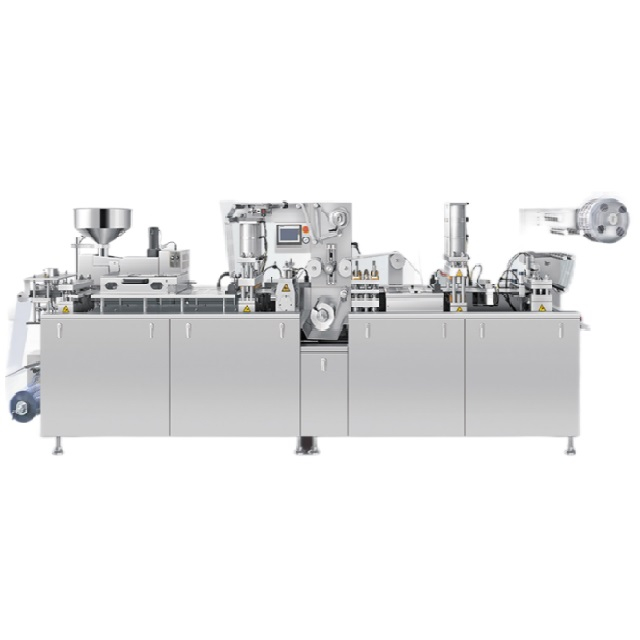

TJ250FIII Flat Type Tropical Blister Packing Machine

1.Worm wheel Reductor: Main machine overloading protect with lower noise and stabile running.
2.Adjustable range of stroke: Can change the stroke dimension freely to suitable more kinds of product.
3.Online machanical photography detection and rejection device with rejected(rata option)
4.Double orientation shafts with spline shaft transmission adopted to ensure synchronization stabile running.

Main Technical Parameter

Main Technical Parameter
Capacity(Cycle/min)		20-40
Packing material	Range of stroke(mm)	40-120
	Pharmacy PVC(mm)	(0.2-0.5)×250
	PTP alu foil(mm)	(0.02-0.05)×250
Tropical alu(mm)		(0.09-0.15)×250
Clean compressed air(pressure)		0.5～0.7Mpa
Air consumption(m³min)		≥0.3
Power		AC380V 50HZ 12KW
Water chiller for moulds		Tap water or recycle water with 60l-/h consumption
Overall dimension(L×W×H)(mm)		4890×650×1700
Net weight(kg)
