Main function:
Mechanism forming, special automatic feeding, sealing, perforation, embossing and cutting. Suitable Alu/PVC & Alu/Alu blister packing for tablets, capsules, irregular tablets, etc.
Characteristic:

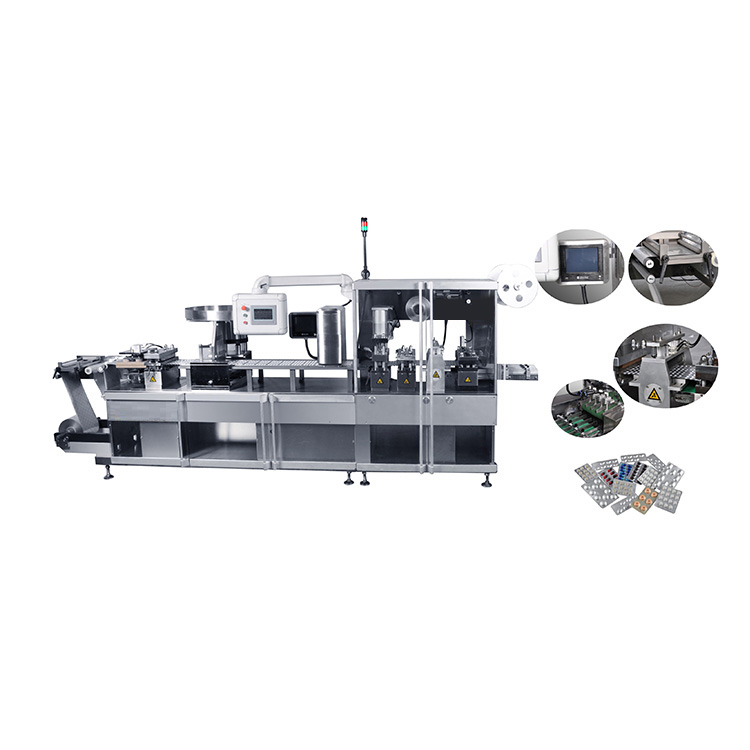

1.TJ260K Flat Type Blister Packing Machine could be separated to enter elevator and clean workshop, adopt column pin location, bolt-fixation, easy to serial production.
2.The die locate day location pin with precision, and press-board dress up.
3.Main motor adopt frequency control: (punch frequency is 70 times/min). It can enact corresponding punch frequency according to travel and fulled feeding easy or hard factor.
4.Adopt servo motor draw device, running steadily, synchronization nicety, change travel and design the plate size at will on the range of 30-120mm.
5.Forming and heating plates close and open automatically, it could protract time to boot-strap after put down heating plate, limit wasting material less than one blister.
6.Air bed sealing, net-plate is hoisted by cylinder while stop. Avoid making blister metamorphose by heat radialization while settling, easy to clean the net-plate also, at the same time,play the role of buffer when over-pressure, is propitious to prolong machine usage life.
7.Up-lower net-plate male and female work in heat-sealing, there are punctuate net-veins on the positive and negative(could line-pressurize also). Because two side stress are equality, make plate more level-up, improve pressurize capability as well.
8.Adopt balcony type structure, easy for operating and maintenance. And equipped with alarm system on the safety doors.
9.Alarm and stop while PVC is used up and discerption, easy to replace PVC on time for workman. The PVC roll diameter can be maximum 600mm, to keep long time running.
10.All hardware and container are contact with medicament, adopt stainless steel and innocuity produce, accord with “GMP” request.
Main Technical Parameters:
