TJ260K Flat Type AL/PLx AL/AL Pharma Medical Pill Tablet Capsule Blister Packaging Packing Forming Sealing Machine

TJ260K Flat Type AL/PLx AL/AL Pharma Medical Pill Tablet Capsule Blister Packaging Packing Forming Sealing Machine

Model:
TJ260K

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product details

TJ260K Flat Type AL/PLx AL/AL Pharma Medical Pill Tablet Capsule Blister Packaging Packing Forming Sealing Machine

Fission Combination Structure: accessible to elevators or renovated clean workshops. Length of stroke by digital control,running speed directly set on human-machine interface according to the material feeding conditions. Printing Register,Missing Pills Rejection Device.

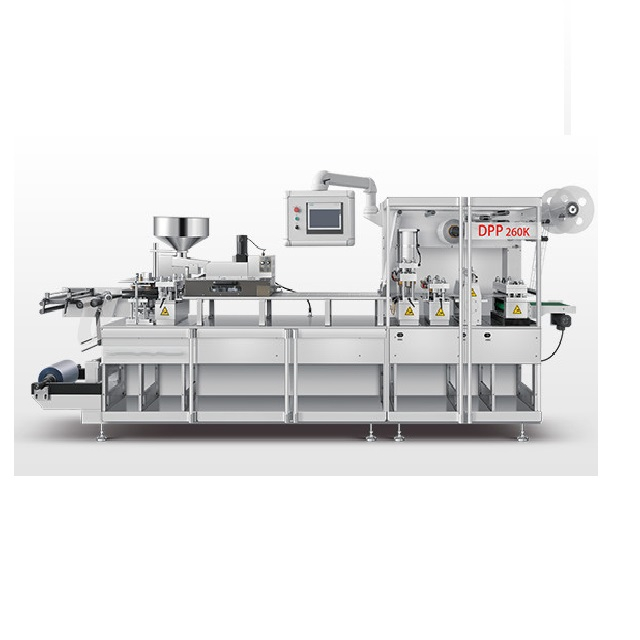

DPP260K Main Technical Parameter

Main Technical Parameter
Capacity(Cycle/min)		AL/PL≤70,AL/AL≤40
Range of stroke(mm)		40-120
Packing material	Pharmacy PVC(mm)	(0.2-0.5)×260
	PTP alu foil(mm)	(0.02-0.05)×260
Cold form alu(mm)		(0.09-0.15)×260
Clean compressed air(pressure)		0.5～0.7Mpa
Air consumption(m³min)		≥0.3
Power		AC380V 50HZ 9.5 KW
Water chiller for moulds		1.5P with 60L/h consumption
Overall dimension(L×W×H)(mm)		4700×820×1820
