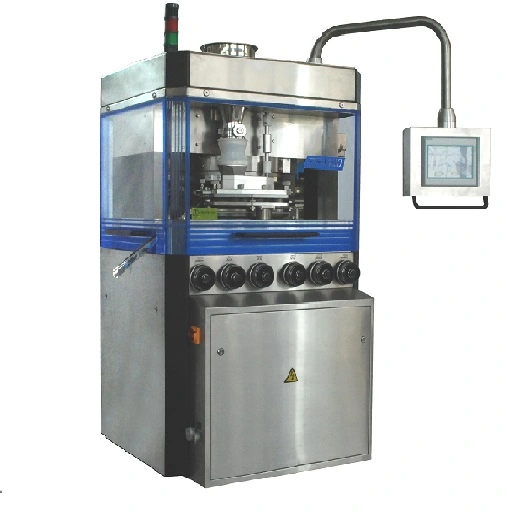

TJ4100 Series Rotary Tablet Press

Model:
TJ4100

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

1.10 inch color touch screen with armed structure.
2.High speed,double side output ,max capacity reach 350000 t/h
3.Offering max main compression capability of 100kN and pre compression of 30 kN.
4.Contained in unique structural design,novel and beautiful appearance design,elegant simplicity.
5.Comply with GMP, compact construction,easy to operate,clean and maintain.
6.Friendly HMI,displays tablet control and filling depth control.
8.Auto central lubricant system,ensures a precise and reliable oil supply control.
9.Easy to assemble and disassemble force feeder.

Main Technical Specifications :

Series		TJ4100
Model		ZP39/2	ZP47/2	ZP57/2	ZP61/2
Number of stations		39	47	57	61
Punch type		TSM 1″ （EU 1″） D	TSM 19 （EU19） B	TSM 19 (EU 19） BB	TSM 19 EU 19 BBS
Max. tablet diameter	mm	25	16	13	11
Max. depth of filling	mm	18
Max. Speed of turret	r/min	48
Max. output	Tablets/h	224640	270720	328320	351360
Max. compression force	kN	100
Max. Pre compression force	kN	30
Power supply	V/Hz	AC 380/50/3
Main motor power	kW	7.5
Foot print	mm×mm	1300×1100
Height of the machine	mm	2160
Weight of the machine	kg	3000

ZP4100
