Product details

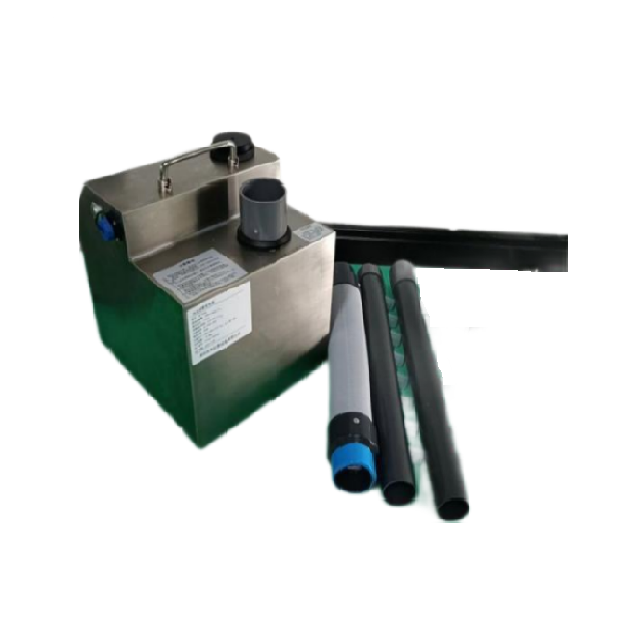

The TJ9-010 PLUS pure water mist generator can produce high concentrationwater vapor (particle size range: 1-10 um concentration over 80%), high visibility,and absolute pollution-free. After the water vapor is emitted in the cleanroom,there are no detectable residual substances.The TJ9-010 PLUS is suitable forsemiconductor and pharmaceutical cleanrooms.
Product features:
Ø Continuous smoking for more than 50 minutes
Ø Can connect to the smoke pipe to produce curtain smoke (can be extended up to 2 meters)
Ø Low noise
Ø Ultra pure spray is pollution-free
Ø Used for testing cleanrooms from 1 to 10,000
Product applications:
Ø Cleanroom laminar flow test
Ø airflow balance test
Ø Test of exhaust system of chemical treatment equipment
Ø Verification of personnel safety discharge system
Ø Pressure balance inside and outside the room
Ø Leakage test of ductwork
Detailed parameters:
Ø External power supply: AC 220V 50Hz The best capacity of water added to the inner box of Ø is 2500ml
Ø Product host size: 280 x 265 x 300 mm (long x wide x high)
Ø Net weight of the host: 9Kg
Ø Input voltage of smoking parts: DC 45V
Ø Rated power consumption: 210W
Ø Fog amount: ≥5500ml/h
Ø Atomization particle size: 1-10 microns
Ø Smoke output rate: 0.95m3/min
Ø Best water addition: 1200 ml
Ø Best atomization water level: 28mm
Ø Fog height: 120~150mm
Ø Applicable water conductivity: 0.15~1.00ms/cm
Ø fog amount and working water level relationship
