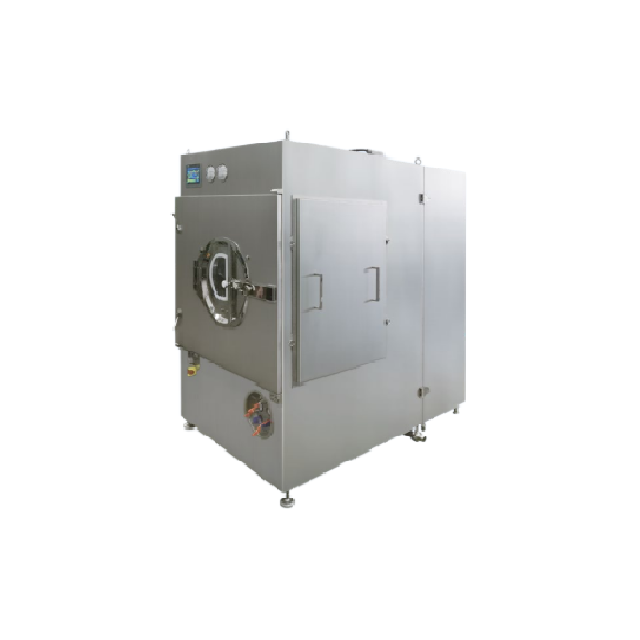

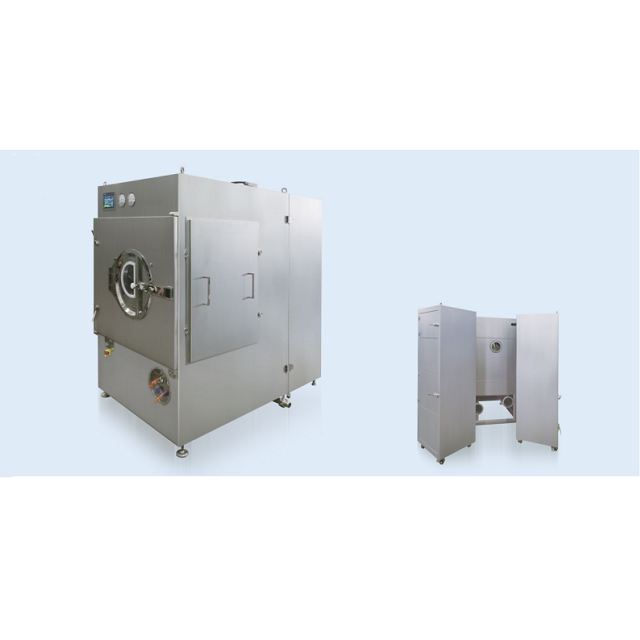

TJB-FA Combined High-Efficiency Coating Machine

（rpm）

Speed adjusting range of coating drum(rpm)

6-30

6-30

6-25

4-21

（kW）

Motor power of main machine

0.37

0.75

0.75

1.1

Regulating range of hot air temperature(℃ )

(Normal temperature ~80℃ )

Filtration accuracy of hot air(μm)

0.5μm（10 万级）

Motor power of hot air machine(kW)

0.25

0.55

0.55

1.1

Motor power of exhaust air machine(kW)

0.37

0.75

1.5

2.2

Power of electric heating(kW)

6

10

10

20

Motor power of peristaltic pump(kW)

0.03

0.03

0.03

0.07

Overall dimension of main machine (m)

1.25×0.9×1.63

1.37×1.1×1.79

1.4×1.1×1.825

1.1×1.76×1.95

Weight (kg)

500

600

800

850
