General description:

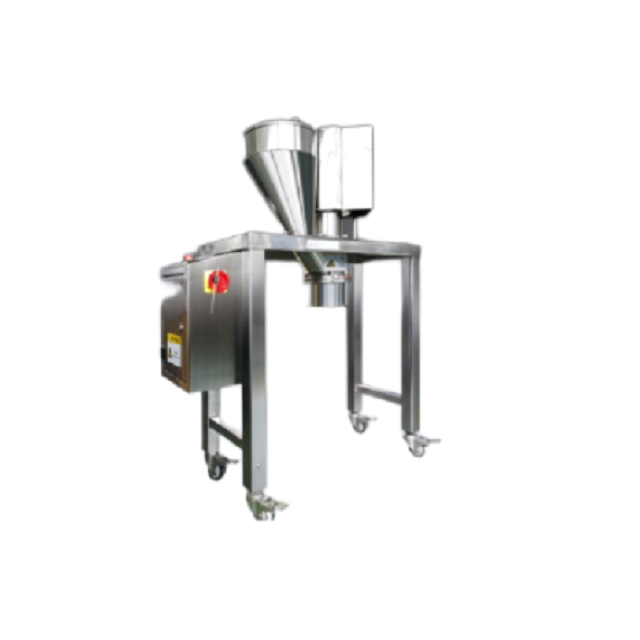

TJB series cone mill used in pharmaceutical, food, fine chemical processing industries. This machine reaches the world advanced level and conforms to the GMP specification. It is completely made of stainless steel .
Usage:
Pharmacy：
1. Mill of raw material.
2. Granulating of wet material.
3. Granulating of dry material.
4. Unqualified tablets to be recycled can be granulated according to the required granularity
Food: Mill of biscuit for recycling.
Others: Grinding and granulating of rough and lump raw material.
Features:
1. Thoroughly solving the tough problem of material contaminated by the debris of worn sieve mesh in a pendulum-type granulating machine.
2. The unique patented shaft sealing technology ensures no leakage of lubrication oil.
3 .Easy to control granularity
4. No retention dead corner,no material overheating.
5. Less dust, no vibration, low noise.
6. High efficiency,energy saving, large production capacity.
7. Attractive appearance,easy to clean.
8 .A-type machine apply to the work requirements of 100-grade workshop.
Working principle:
The material to be processed enters into the feed inlet of cone mill, then drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force,meanwhile,the granules are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh size, the gap between rotary knife and sieve, and the rotary speed.
