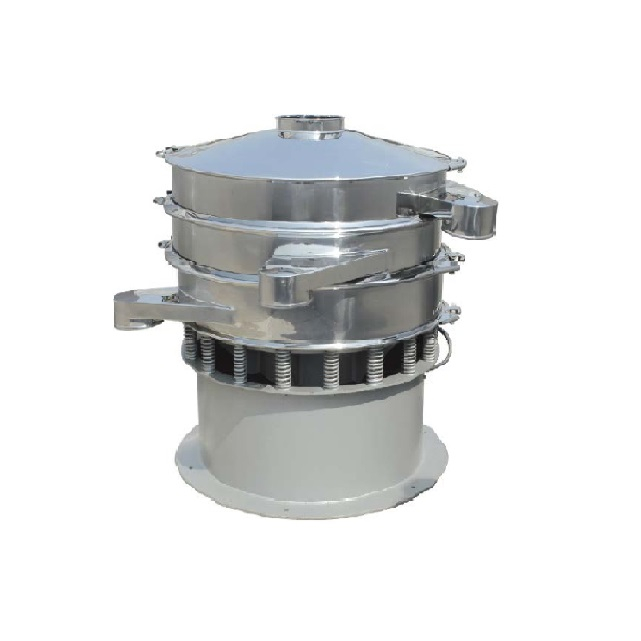

TJX Rotary Vibrating Screen

Product information

Description:

TJX rotary vibrating screen is a new screening machine to sift the fine particles with high precision, which

can achieve satisfactory screening results for granules and fine powder. The vibration of the sieve is produced by

the vibration of the vibrating device, which forces the material to form the orbital vortex in the sieve machine,

which is very useful for sieving the material. Adjusting the relative position of the upper and lower heavy hammer

can improve the moving track of the material on the sieve surface, prolong or shorten the staying time ofthe

material on the sieve surface, so as to achieve the ideal sieving effect.

The machine has the advantages of compact structure, small volume, no dust, low noise, large output and

convenient maintenance. It is widely used in medicine, food, chemical industry and other industries

Main technical parameters:

Model              Nominal Diameter(mm)          Layer            Rotation of motor(rpm)             Power(kw)

TJX-500                           500                            1-3                           1450                                   0.55

TJX-650                           650                            1-3                           1450                                   0.75

TJX-800                           800                            1-3                           1450                                   0.75

TJX-1000                        1000                           1-3                           1450                                    1.5

TJX-1200                        1200                           1-3                           1450                                    2.2

TJX-1500                        1500                           1-3                           1450                                    2.2

TJX-2000                        2000                           1-3                           1450                                    3.0
