Product details

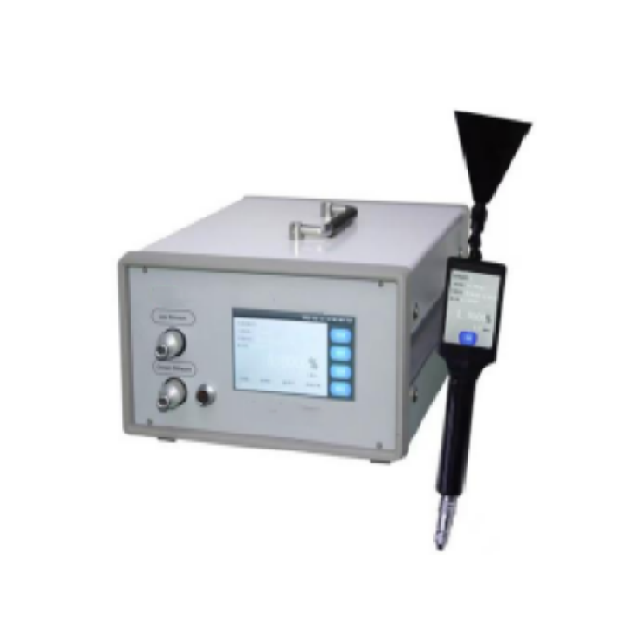

TJY-2i Aerosol Photometer is used by food and pharmaceutical manufacturers for on-site leak detection after the installation of high-efficiency filters and their systems, primarily to inspect small pinholes and other damages in the filter media, such as frame seals, gasket seals, and leaks in the filter structure. The purpose of leak detection is to check the sealing performance at the high-efficiency filter and its connection points with the installation frame, promptly identify defects in the high-efficiency filter itself and its installation, and take appropriate corrective measures to ensure the cleanliness of the area.
TJY-2i Automatically switches between upstream and downstream aerosol concentrations to determine whether there is a leak in the filter. The portable scanning probe allows the operator to quickly and accurately locate the leak point in remote locations and determine other leakage ratios. When the alarm threshold is exceeded, the display panel will show the alarm.
Product features:
1.The structure is designed reasonably, small in size and easy to carry
2.The main unit uses a 5-inch color touch screen, making it easier to operate and faster to process data
3.Intuitive display of leakage rate and pump sampling speed and other data
4.Portable scanning probe, 3.5-inch color display, one-click operation, and synchronized display with the host interface for users to observe test results
5.Automatic switching between upstream and downstream
6.In order to ensure the reliability and stability of the data, the inlet pump and light source are used.
Application area:
l High efficiency filter validation
l Equipment certification, equipment monitoring
l Biosecurity cabinet, clean workbench
l Semiconductor industry
Product Parameter:
Name | Aerosol photometer |
Model | TJY-2i |
Data range | 0.0001%-100.0% color LCD display |
Dynamic range | 0 mg/ m3~ 120mg/m3 |
Definition | Read value of 1% (0.01% to 100%) |
Repetitiveness | Read value 0.5% (0.01%-to 100%) |
Flow control | 1cfm(28.3L/min)±10% |
Automatic reset | Automatically set to zero |
Report to the police | When the preset limit is exceeded, you can choose sound or visual mode to alarm |
Report | Continuous mode, storage mode (can store 6000 sets of data), print mode |
Type of aerosol | PAO, DOP, DEHS and other polydispersity |
Satisfying criteria | NSF49, IEST, ISO14644, EN61010-1:2010, EN61326-1:2006 |
Source | AC 220V 50/60Hz |
Outline dimension | 258 (long) x178 (wide) x360 (deep) |
Weight | 9.8kg (body), 10.3kg (body, scanning probe) |
