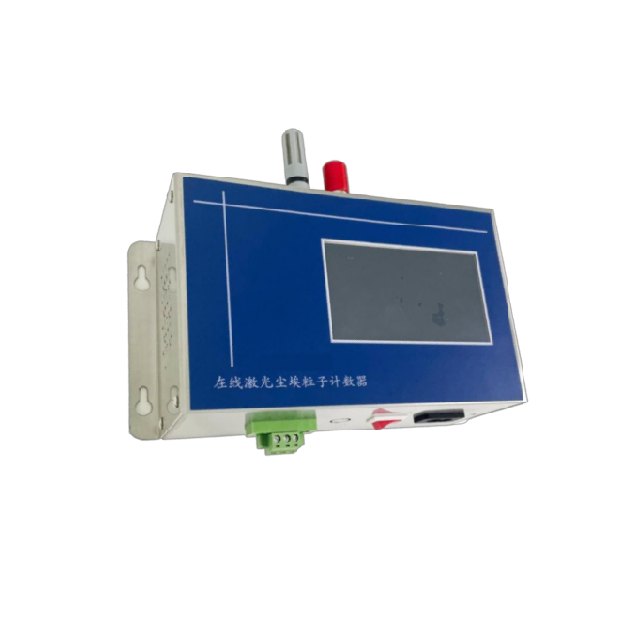

TJY-3006 Online dust particle counter

Product details

Online laser particle counter with RS485-MODBUS communication and 0-5V analog output

the counter sampling covers 6 particle size channels 0.3μm 0.5μm 1.0μm 3.0μm 5.0μm 10.0

μ m Built-in MAX1480E with optical coupling bus communication chip ensures reliable

communication transmission.It has 24 hours real-time monitoring, can output test results

in real time, the product is certified by GMP or ISO equipment, meets the standards of clean

room use, safe and reliable.

Technical parameter

Sampling flow:2.83L/min ±5%

Article size classification:0.3um,0.5um,1um,3um,5um,10um

Laser light source:Long-life laser diode, life span of 10 years

Intake pump:Stable flow, energy saving and environmental protection

Verification standards:GB/T6167-2007,JJF1190-2008

Relative error of repeatability:<±10%

Particle size distribution error:<±30%

Maximum sampling concentration:35,000 per liter

Self-cleaning time:≤ 10min (3 consecutive zeros within 10 minutes, with 95% confidence)

Dwell time:User self-set (2 ~ 6000 seconds)

Sampling delay:User self-set (1 ~ 100 seconds)

Counting patterns:Cumulative number

Video display:Color 4.3-inch touch screen / screenless

Charge power supply:AC 220V/50Hz

Data communication interface:RS 485

Usage environment: 0∽ 40 ℃ relative humidity
