Product details

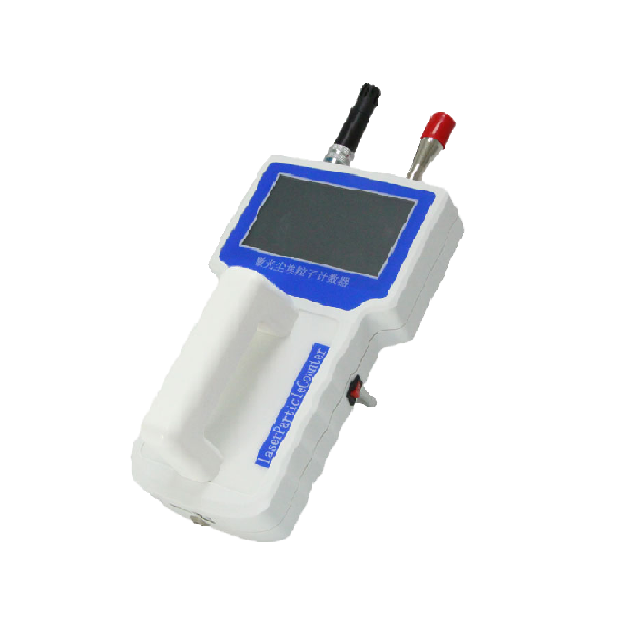

TJY-3016 PLUS laser dust particle counter (hereinafter referred to as the instrument) is
used to measure the size distribution and number of dust particles in a unit volume of
clean environment, and can directly detect and determine the cleanliness grade A or B
clean environment.The TJY-3016 PLUS instrument has a first-class function and characteristics.
The instrument provides six channels or specific particle size, 2.83L/min(0.1ft3/min) flow
rate of 0.3, 0.5, 1.0, 3.0,5.0 and 10μm.
The counter can be equipped with high-precision (temperature/humidity) probes providing
you with a complete solution. The instrument uses a semiconductor laser light source and a
large-size touch screen display, featuring small size, light weight, high detection accuracy,
simple and clear functional operation, microcomputer control, direct storage, and printing
of sampling test results, making it very convenient for testing clean environments.The instrument
can be connected to the PC and controlled online through the companys dust particle counter
dedicated communication software, which facilitates the viewing, storage and uploading of
various data on the PC. This model can be used as a dust particle counter alone or integrated
into the online equipment monitoring system.
Main application:
The instrument is widely used in the electronic industry, pharmaceutical industry, semiconductor
industry, optical, precision machinery processing field, food manufacturing, cosmetics
manufacturing, medical and health care, biological products, hospitals, environmental protection,
inspection institutes, aerospace and other industrial production enterprises and research
departments as well as epidemic prevention stations, disease control centers, blood centers,
uality supervision institutes and other authoritative institutions.
Technical parameter:
Light source: semiconductor laser light source
Life: ≥30,000H
Sampling flow: 2.83L
Particle size channel: six channels, 0.3, 0.5, 1.0, 3.0, 5.0, 10(μm)
Display operation: Touch the large screen
Detection range: 1 million ~ 100
UCL report: in line with FS-209E and Chinese GMP standards
Sampling cycle: 5s-9999s self-set
Sampling delay: 1s-100s self-set
Sampling points: 2-99 points can be set arbitrarily
Sampling frequency: 2-99 times, arbitrarily set
Sampling area: according to the requirements, any letter plus number combination or set by
yourself
Sampling concentration: ≤35000 particles/L (dust particle size is less than 0.5 microμm)
Sampling units: particle, particle/m³, particle/FT3 and other three units are selected
Self-cleaning time: less than 10min
Working environment: temperature 10℃-35℃, relative humidity less than 75%, atmospheric
pressure 86kPa-106kPa
Sampling conditions: The sampling gas shall not contain corrosive gases such as acid and alkali or
high temperature
Data storage: 20,000 sets of data are stored in a cycle
Data printing: external high-speed thermal printer
Data communication: USB2.0 interface, baud rate 115200
Battery life: ≤10H (may vary according to season or instrument life)
Charging time: ≈4H (it may vary according to the season or the service life of the instrument)
:: Power consumption: 8W
Size: 140 x 280 x 100 (W x L x H) mm
Weight: 1.05KG
Power source: DC8.4V; AC 220V±10%,50Hz±2Hz
Attachment: special seismic instrument box, manual, factory inspection report, certificate of
conformity, zero-count filter (self-cleaning), power adapter, etc., dynamic sampling port,
Bluetooth printer, dust-proof cap, temperature and humidity sensor (optional)
