Product details

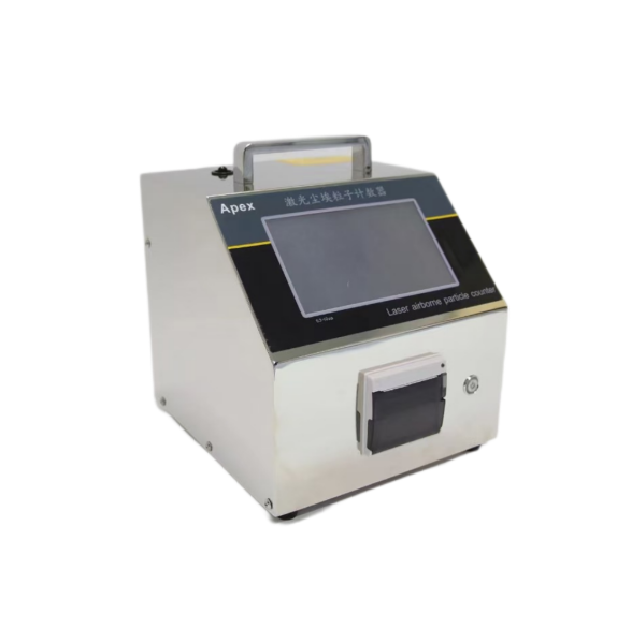

The TJZY-3106 series laser dust particle counter (hereinafter referred to as the instrument) is used to measure the size distribution and number of dust particles in a unit volume of clean environment, and can directly detect and determine the cleanliness grade A or B clean environment.
The TJZY-3106 series instruments feature first-class functions and characteristics, providing six-channel specific particle size measurement with 28.3L/min (1 ft³/min) flow rates of 0.3, 0.5, 1.0,3.0,5.0,and 10 μm. The counter can be equipped with high-precision (temperature/humidity) probes, offering you a complete solution. The instruments use semiconductor laser light sources and large-size touch-screen LCD displays, featuring small size, light weight, high detection accuracy, simple and clear functional operation, microcomputer control, direct storage and printing of sampling test results, making it very convenient for testing clean environments.
The instrument can be connected to the PC and controlled online through the companys dust particle counter dedicated communication software, which is convenient to view, store and upload various data on the PC. This model can be used as a dust particle counter alone or integrated into the online equipment monitoring system.
This model instrument is equipped with an audit trail function module, which can work in data integrity (DI) mode and is used in conjunction with the dust particle counter communication software to meet (GMP-2010) ALCOA+CCEA principles and FDA requirements for 21CFR, as well as regulatory requirements for GMP users.
Main application:
The instrument is widely used in the electronic industry, pharmaceutical industry, semiconductor industry,optical,precision machinery processing field,food manufacturing, cosmetics
manufacturing, medical and health care, biological products, hospitals, environmental protection, inspection institutes, aerospace and other industrial production enterprises and scientific research departments as well as epidemic prevention stations, disease control centers, blood centers, quality supervision institutes and other authoritative institutions.
Technical parameter:
Light source: semiconductor laser light source
Life: ≥30,000H
Sampling flow: 28.3L sampling quantity
Particle size channel: six channels, 0.3, 0.5, 1.0, 3.0, 5.0, 10(μm)
Detection range: 100 ~ 1 million
UCL report: in line with FS-209E and Chinese GMP standards
Sampling cycle: 5s-9999s self-set
Sampling delay: 1s-100s self-set
Sampling points: 2-50 points can be set at will
Sampling frequency: 2-50 times, arbitrarily set
Sampling area: according to the requirements, any letter plus number combination or set by yourself
Sampling concentration: ≤35000 particles/L (dust particle size is less than 0.5 microμm)
Sampling units: particle, particle/m³, particle/FT3 and other three units are selected
Self-cleaning time: less than 10min
Working environment: temperature 10℃-35℃, relative humidity less than 75%, atmospheric pressure 86kPa-106kPa
Sampling conditions: the sampling gas shall not contain acid, alkali, high temperature and other corrosive gases
Data storage: 20,000 sets of data are stored in a cycle
Data printing: Built-in high-speed thermal printer
Data communication: USB2.0 interface, RS232 interface, baud rate 115200
Battery life: 28.3L ≤ 7 hours (DC type)
Power consumption: 80W (AC)/50W (DC)
Size: 245 x 285 x 280 (W x L x H) mm
Weight: 8.06KG (DC type), 5.25KG (AC type)
Power source: 16.8V (DC type); 220V±10%,50Hz±2Hz (AC type)
Attachement:aluminum alloy special box,manual,factory inspection report,certificate of conformity, ero counting filter (self-cleaning),power adapter DC type (or power line AC type), sampling stand,equal power sampling port, printing paper,sampling extension pipe, temperature and humidity sensor (optional)
